HOME>>XCMG>>XCMG XE500C

2015 XCMG XE500C

1/8
Buy XCMG XE500C Used Excavator / 1
Buy XCMG XE500C Used Excavator / 2
Buy XCMG XE500C Used Excavator / 3
Buy XCMG XE500C Used Excavator / 4
Buy XCMG XE500C Used Excavator / 5
Buy XCMG XE500C Used Excavator / 6

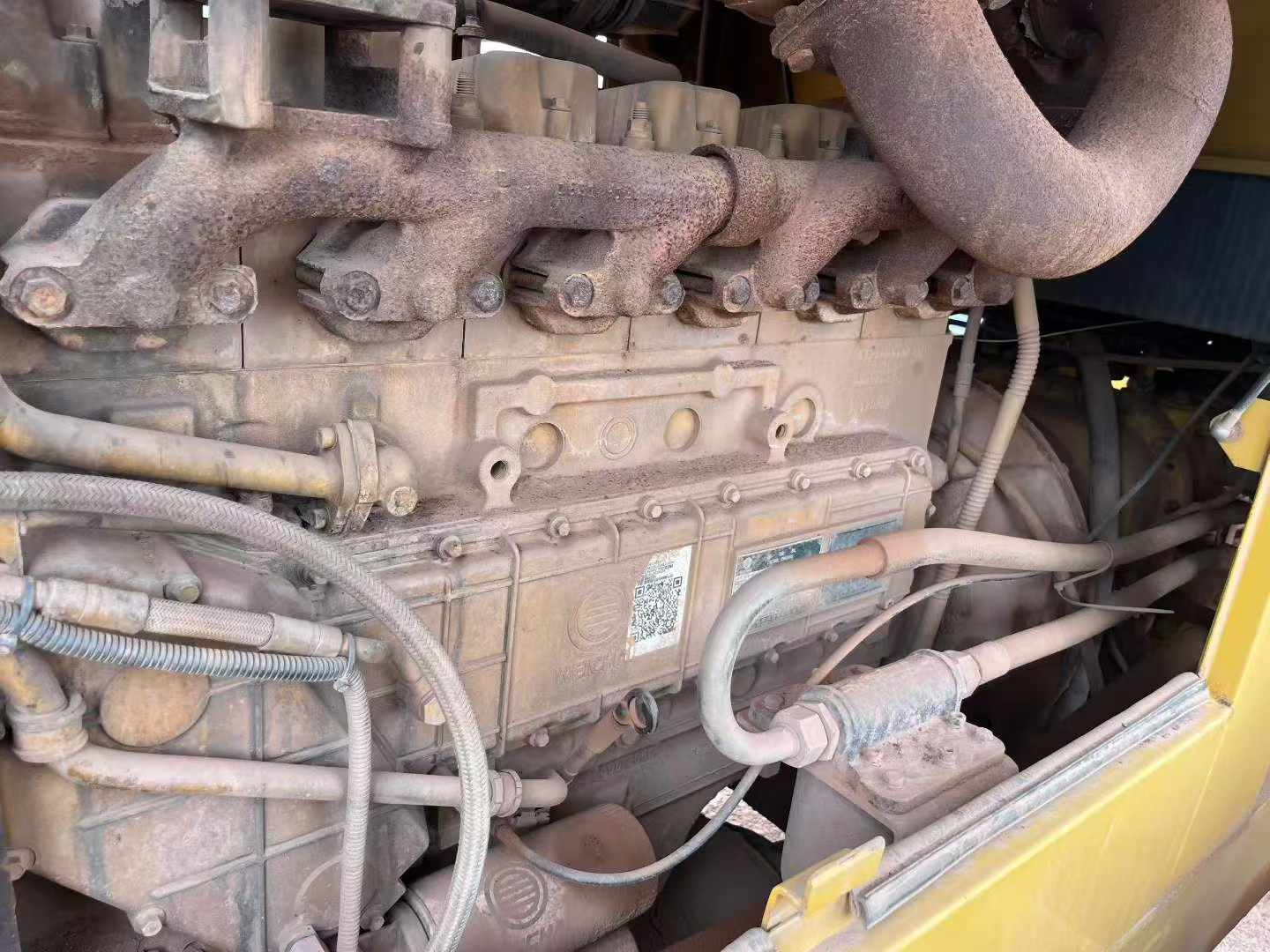

Buy XCMG XE500C Used Excavator / 7
Buy XCMG XE500C Used Excavator / 8

Product Description

This 2015 XCMG XE500C hydraulic excavator offers proven performance for demanding excavation and earthmoving operations. Currently located in Guangxi, China, this 50-ton class machine features XCMG's reliable engineering with approximately 40,000 operating hours recorded. The XE500C is well-suited for large-scale construction, mining, and infrastructure projects requiring substantial digging force and reach.

  • Year of Manufacture: 2015
  • Model: XCMG XE500C
  • Operating Weight Class: 50 tons
  • Hours: Approximately 40,000+
  • Current Location: Guangxi Province, China
  • Condition: Used, operational

This unit represents a cost-effective solution for contractors seeking heavy excavation capacity. Inspection and export arrangements can be coordinated upon request.

SpecificationsValue
No.1082458
Tonnage (tons)50
Working weight (kg)47300
Bucket capacity (m³)2.1 ~ 2.5
Boom length (mm)7060
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins QSM11
Rated power (kw/rpm)250/2100
Maximum torque (N.m/rpm)1674/1400
Number of cylinders (PCS)6
Displacement (L)11
Ground specific pressure (Kpa)85.9
Rotation speed (rpm)9
Climbing ability (%)35
Bucket digging force (kN)284
Rod digging force (kN)236
Maximum tractive force (kN)236
Travel speed (km/h)5.4/3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)28.4
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)12032
Total transport width (mm)3724
Total transport height (mm)4165
Counterweight ground clearance (mm)1360
Minimum ground clearance (mm)703(without tooth height)
Back end turning radius (mm)3665
Total track length (mm)5220
Track gauge (mm)2392/2890
Total track width (mm)600
Maximum digging radius (mm)11631
Maximum digging depth (mm)7337
Maximum excavation height (mm)10675
Maximum unloading height (mm)7409
Maximum vertical digging depth (mm)5225
see more

Overview

No.1082458

Brand Name:

XCMG

Model Number:

XE500C

Year:

2015

Location:

Guangxi China

Pub Date
