Product Description
Designed for operators who demand precision and power, this 2025 XCMG XE500C excavator delivers exceptional performance across demanding job sites. Weighing 47,300 kg and powered by a robust Cummins QSM11 engine generating 250 kW at 2100 rpm, this 50-ton machine combines strength with refined control. Operators benefit from superior visibility and ergonomic cabin design, ensuring confident maneuvering during extended shifts.
- Reach & Depth: Maximum digging radius of 11,631 mm and depth of 7,337 mm tackle large-scale excavation projects

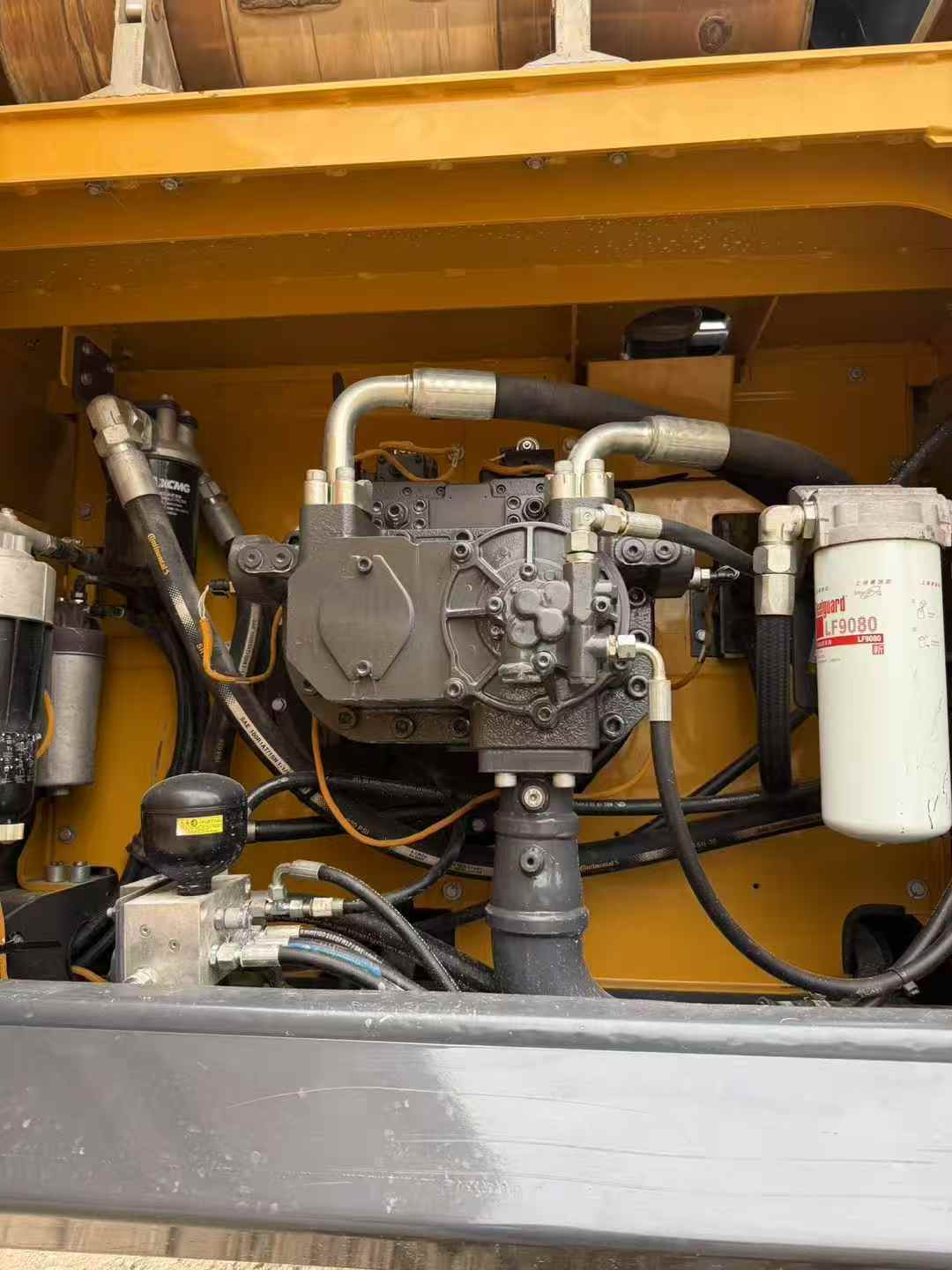

- Hydraulic Efficiency: Dual main pumps deliver 2 x 360 L/min for responsive bucket and arm movements
- Digging Force: 284 kN bucket force and 236 kN arm force handle tough material with ease
- Stability: 3,665 mm rear turning radius and optimized ground pressure (85.9 kPa) ensure balanced operation on varied terrain
- Capacity: Bucket range of 2.1–2.5 m³ maximizes productivity per cycle
Currently located in Guizhou, China, this backhoe-configured excavator represents proven XCMG engineering built for operators who prioritize control, comfort, and consistent outp
| Specifications | Value |
|---|---|
| No. | 1022301 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 47300 |
| Bucket capacity (m³) | 2.1 ~ 2.5 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

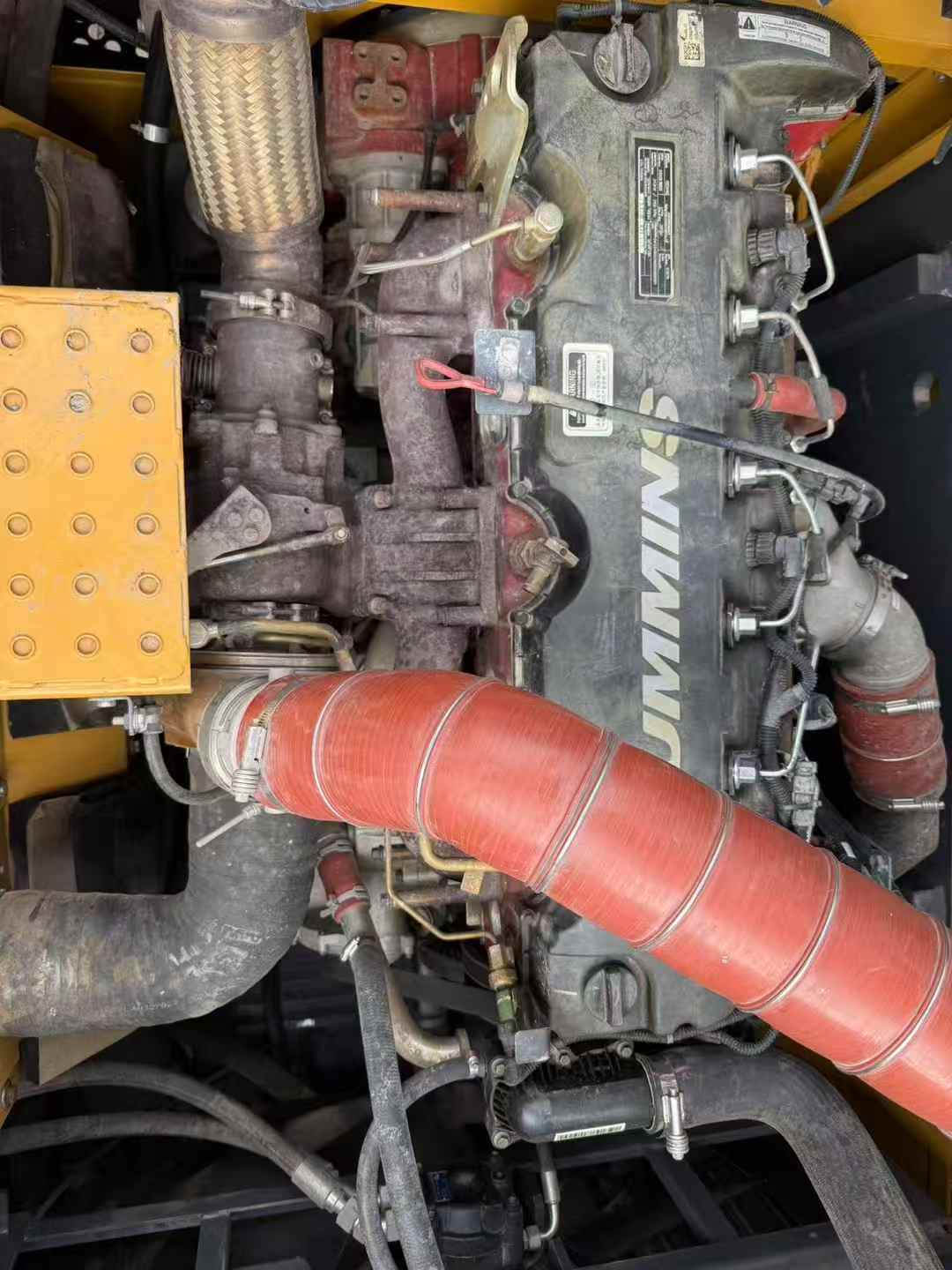

| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 250/2100 |
| Maximum torque (N.m/rpm) | 1674/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 85.9 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 236 |
| Maximum tractive force (kN) | 236 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12032 |
| Total transport width (mm) | 3724 |
| Total transport height (mm) | 4165 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 703(without tooth height) |
| Back end turning radius (mm) | 3665 |
| Total track length (mm) | 5220 |
| Track gauge (mm) | 2392/2890 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 11631 |
| Maximum digging depth (mm) | 7337 |
| Maximum excavation height (mm) | 10675 |
| Maximum unloading height (mm) | 7409 |
| Maximum vertical digging depth (mm) | 5225 |
