Product Description

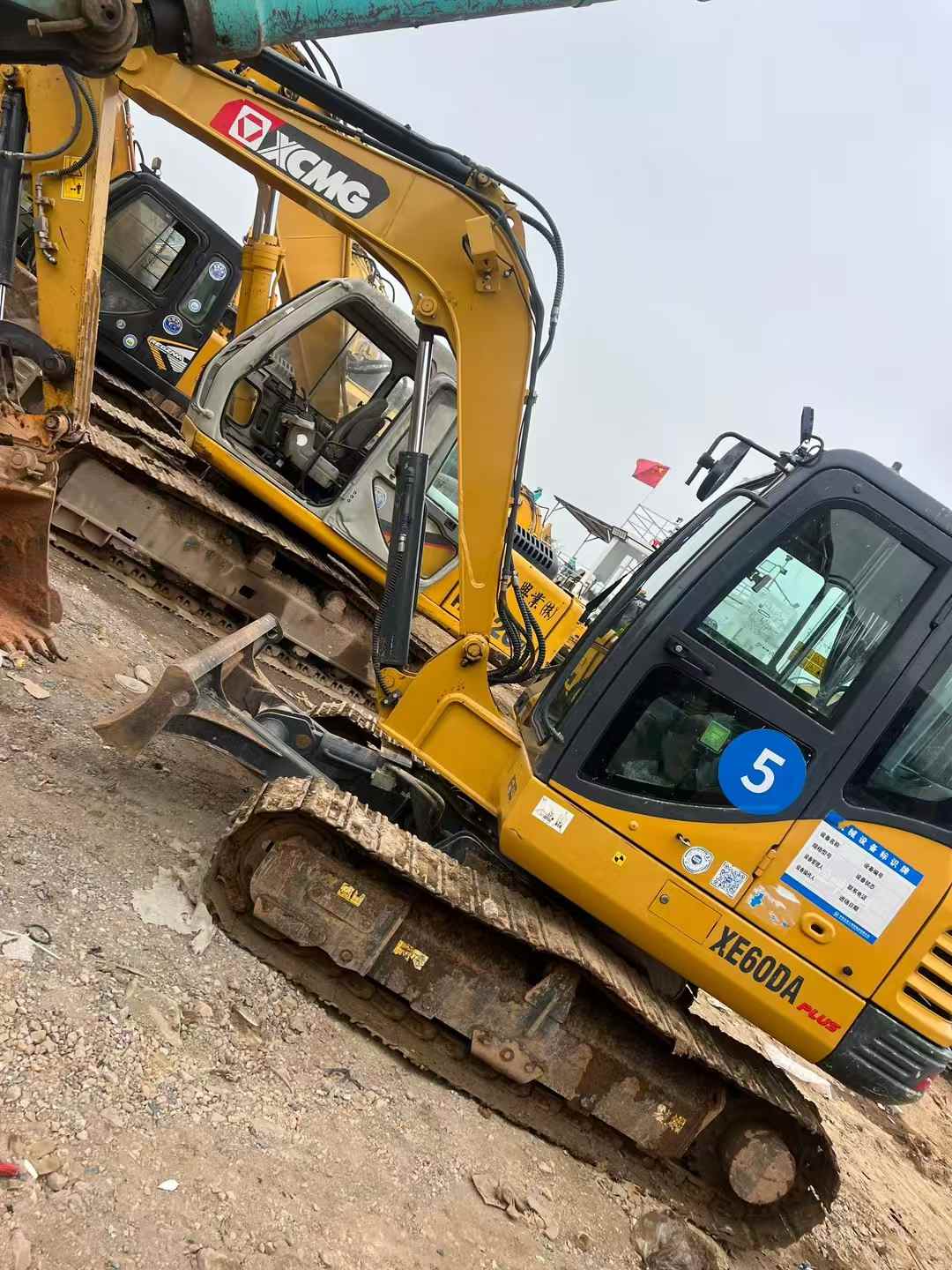

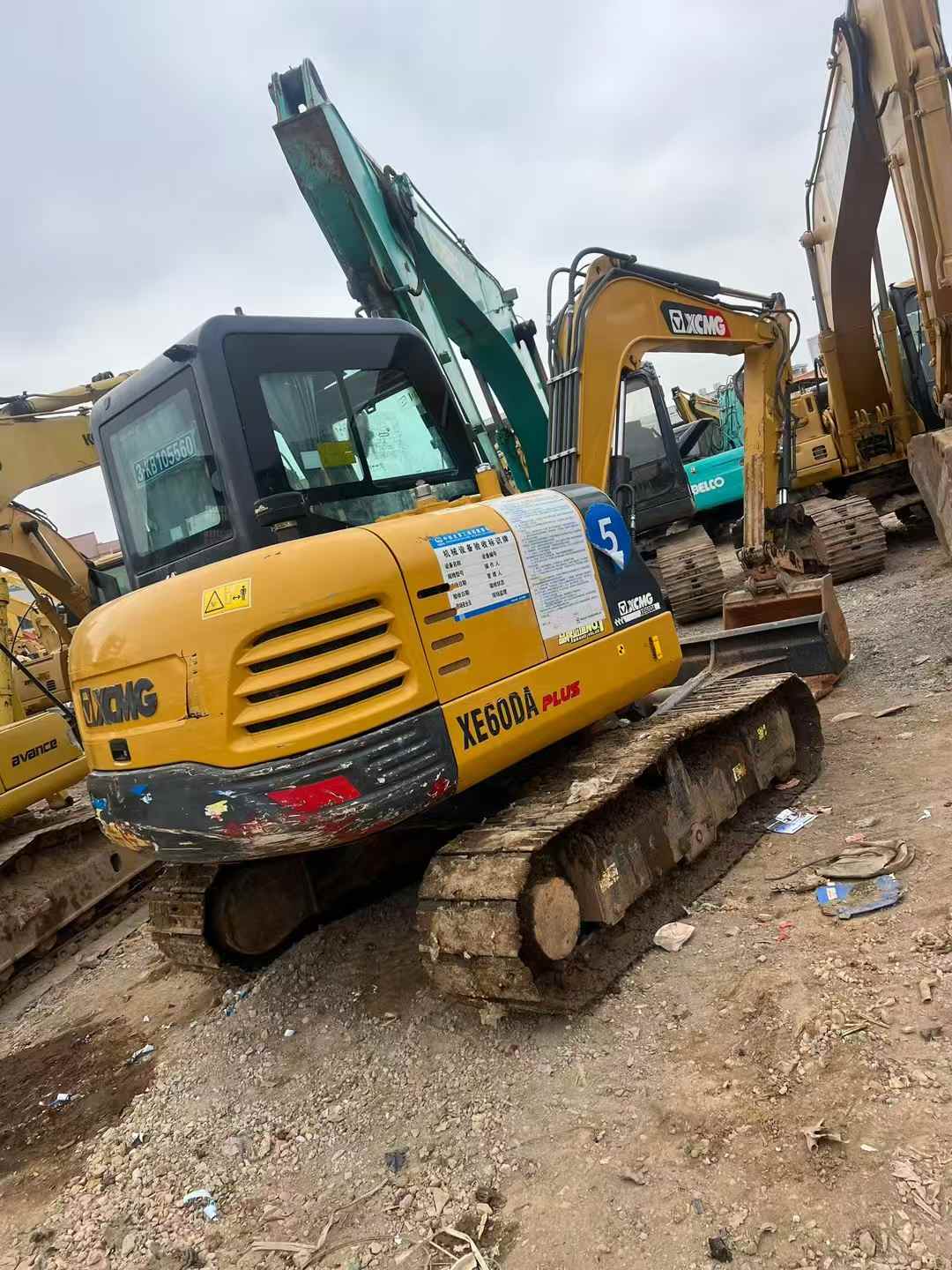

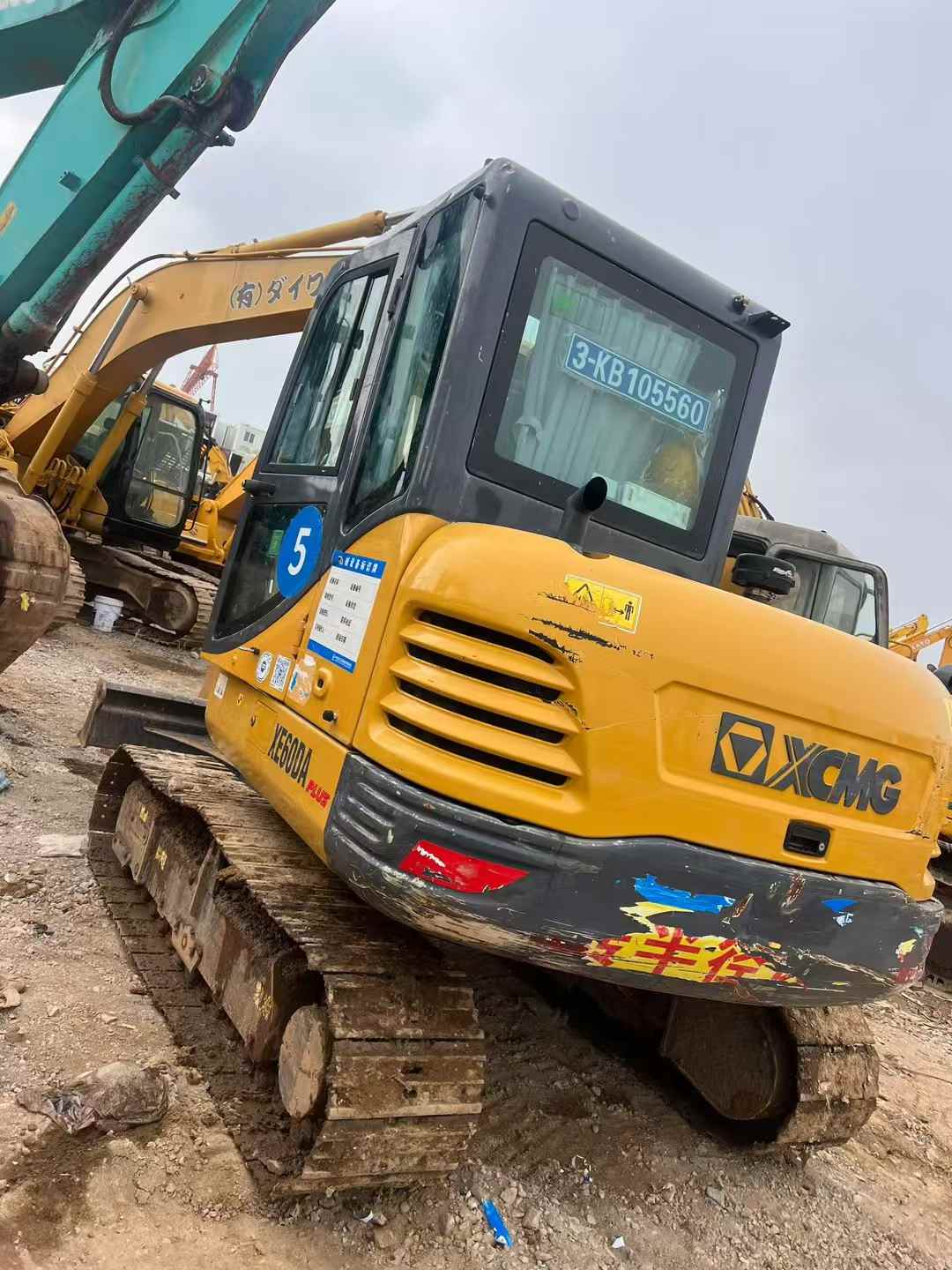

Proven performance meets practical value with this 2016 XCMG XE60 mini excavator, now available from our Dongguan, Guangdong facility. Powered by a reliable Yanmar 4TNV94L engine delivering 39.8kW at 2200 rpm, this 6-ton workhorse combines precision hydraulics with robust construction. XCMG's market-leading parts network across China and global distribution ensures minimal downtime—a critical factor when purchasing used equipment. The XE60's Rexroth main pump system and dual 60.5 l/min flow capacity deliver consistent digging force of 42.5kN, while the compact 5850mm transport length makes mobilization straightforward.
- Operating weight: 5,960 kg with 0.09-0.23 m³ bucket capacity
- Maximum digging reach: 6,130 mm / Maximum depth: 3,830 mm

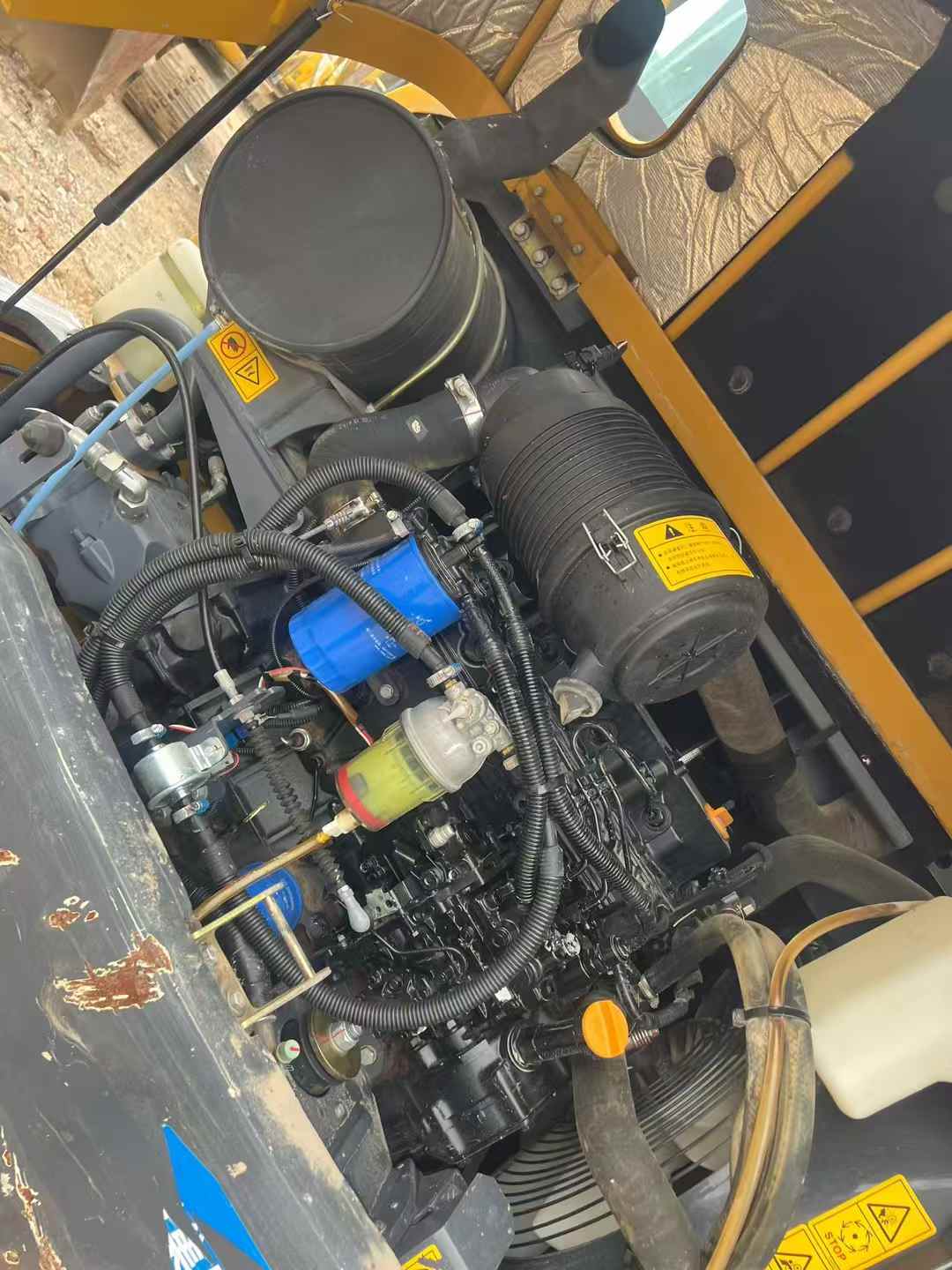

- Water-cooled 4-cylinder engine with 3.054L displacement
- Standard hydraulic crushing pipeline for attachment versatility
- XCMG's established resale value retention in secondary markets
Factory-direct from Xuzhou manufacturing, this model represents smart investment economics. XCMG's widespread dealer support and readily available wear components reduce total cost of ownership compared to imported alternatives requiring specialized parts lo
| Specifications | Value |
|---|---|
| No. | 1012126 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

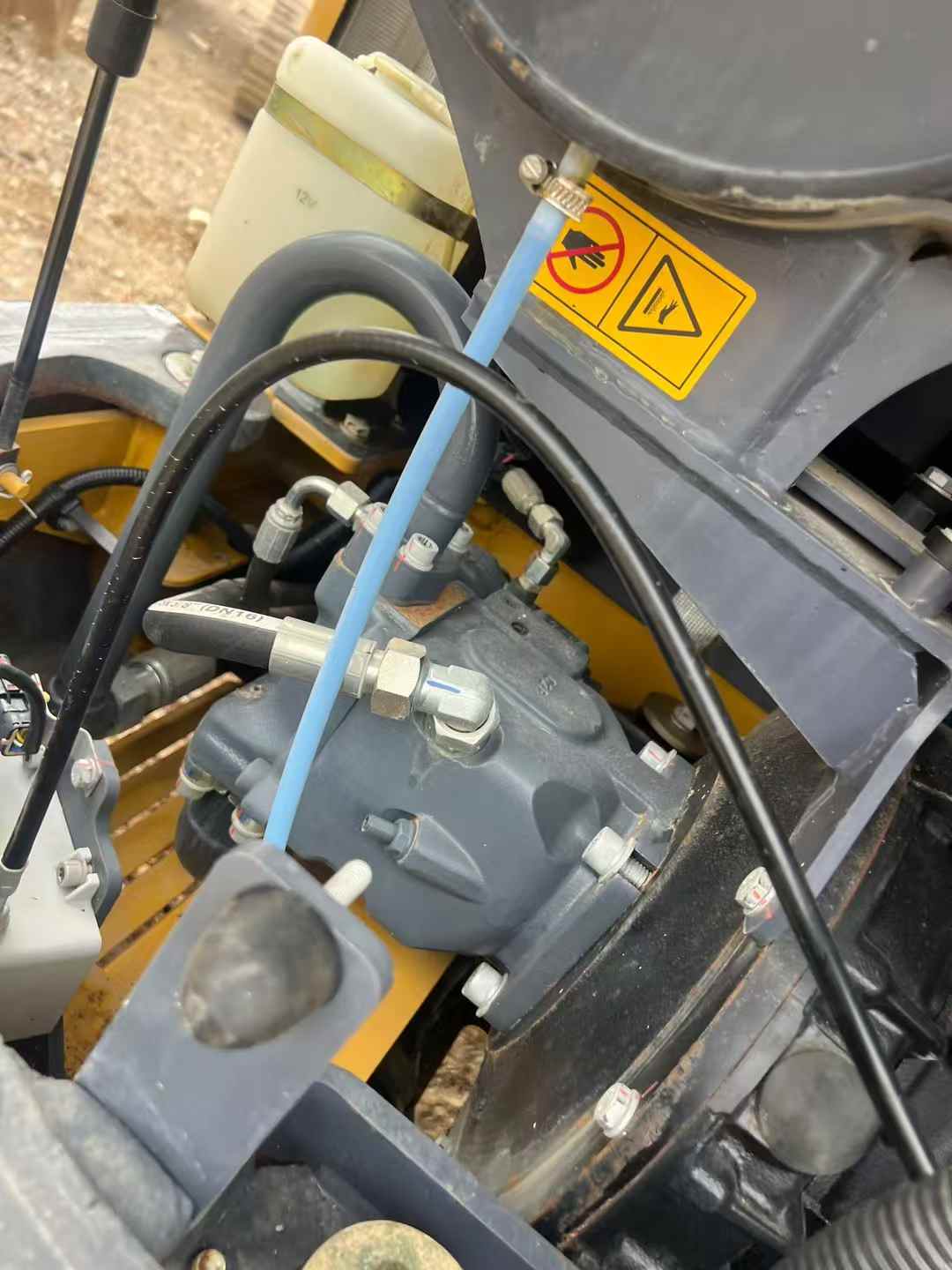

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
