Product Description

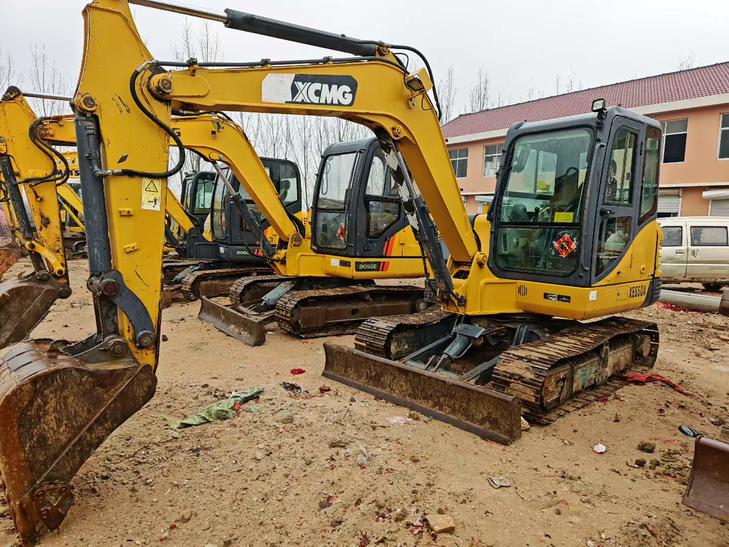

With a working weight of 6200 kg and a bucket capacity ranging from 0.09 to 0.25 m³, the XCMG XE65D is an ideal fleet addition for contractors seeking reliable performance. Located in 山东青岛, this 2020 model features a robust Yanmar 4TNV94L engine, delivering 39.8 kW at 2200 rpm. Its 3000 mm boom and 1600 mm rod lengths ensure versatility on various job sites. Equipped with a water-cooled, four-cylinder engine, this excavator offers a rated power of 39.8 kW and a maximum travel speed of 4.2 km/h. The XE65D boasts a 48.3 kN bucket digging force and a 32.5 kN rod digging force, making it suitable for tough excavation tasks. Its compact design, with a total transport width of 2000/1920 mm, allows for easy maneuverability and transportation. Add this unit to your fleet for enhanced productivity and reliability.
| Specifications | Value |
|---|---|
| No. | 1020664 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
