Product Description
Built for reliability and proven in demanding conditions, this 2021 XCMG XE65D compact excavator delivers consistent performance across construction, landscaping, and utility projects. Operating at 6 tons with a working weight of 6,200 kg, this machine combines maneuverability with substantial digging power. Powered by a Yanmar 4TNV94L engine generating 39.8 kW at 2200 rpm, it provides dependable hydraulic force with bucket digging力 reaching 48.3 kN and rod digging force of 32.5 kN.
Engineered with precision hydraulics featuring Rexley/Ogail main pumps and maximum flow rates of 138/143 l/min, this workhorse maintains productivity throughout extended operating cycles. Maximum digging depth extends to 3,830 mm with a reach of 6,130 mm, while the compact 5,860 mm transport length ensures easy site mobility. Water-cooled 4-cylinder engine with 3.054L displacement operates efficiently in varied climates.
Key Specifications:
- Rated Power: 39.8 kW @ 2200 rpm
- Bucket Capacity: 0.09-0.25 m³
- Maximum Digging Depth: 3,830 mm
- Hydraulic System: 24.5 MPa main overflow pressure
- Currently located in Heze, Shandong
| Specifications | Value |
|---|---|
| No. | 1019547 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

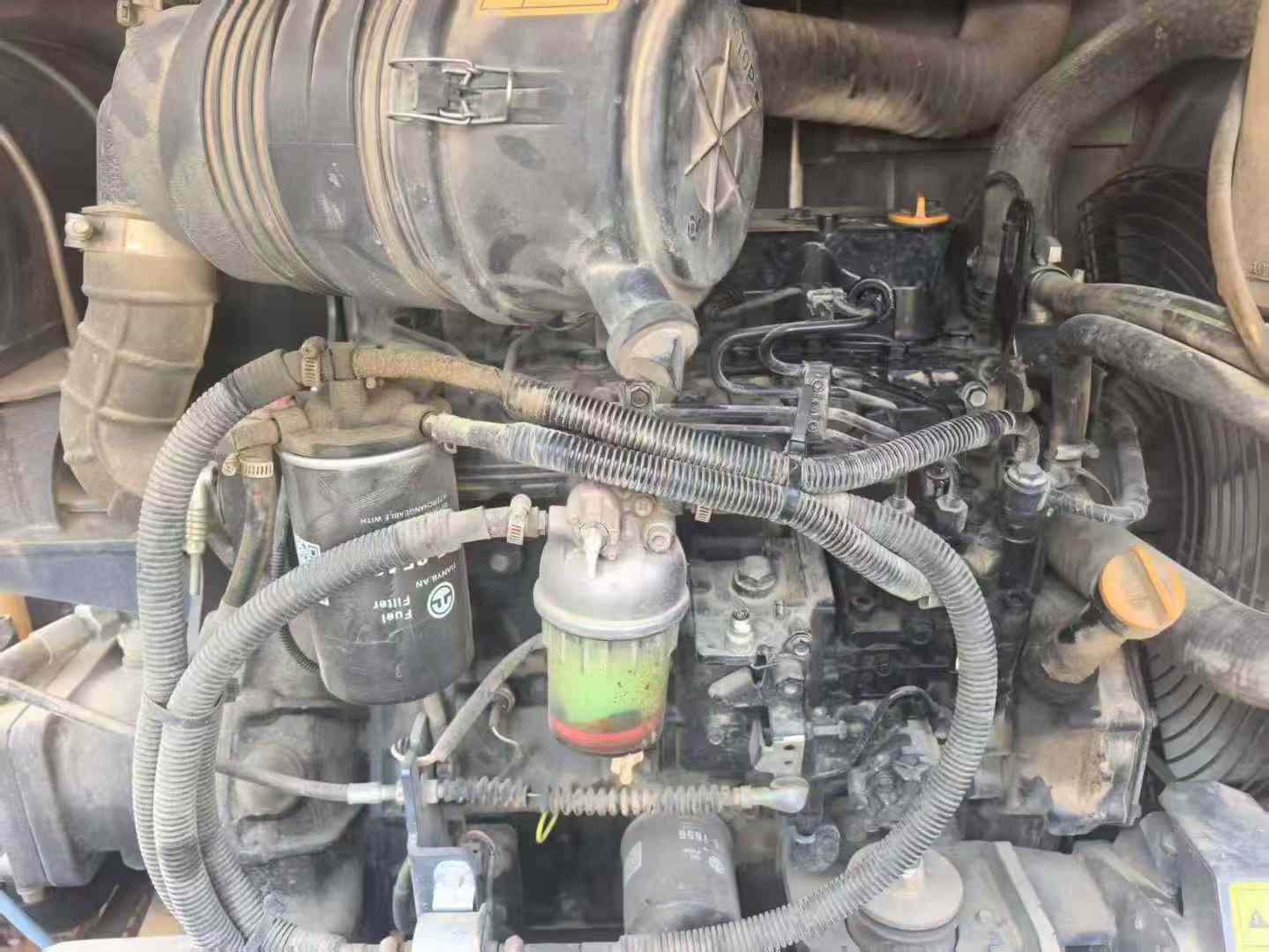

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
