Product Description

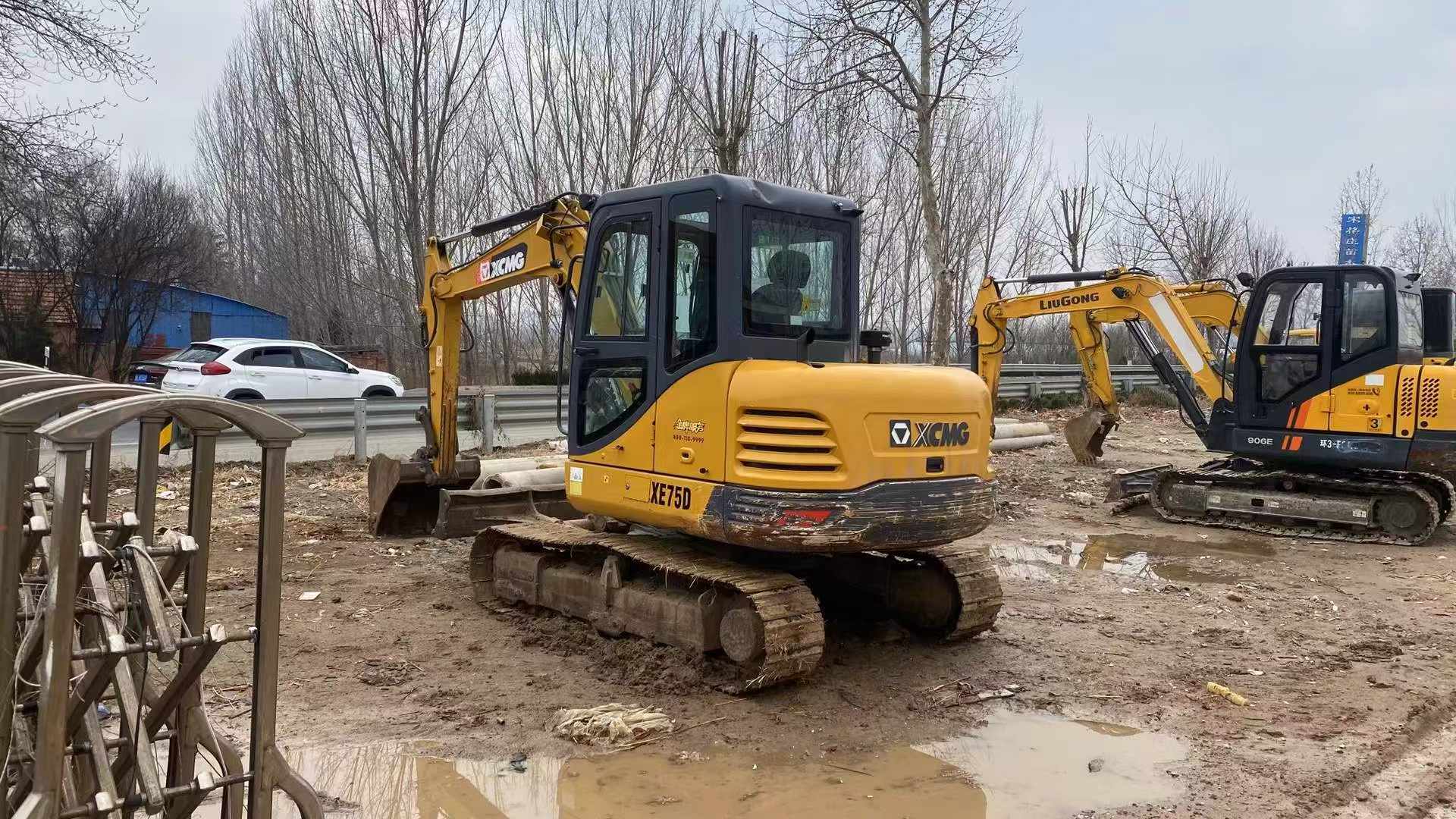

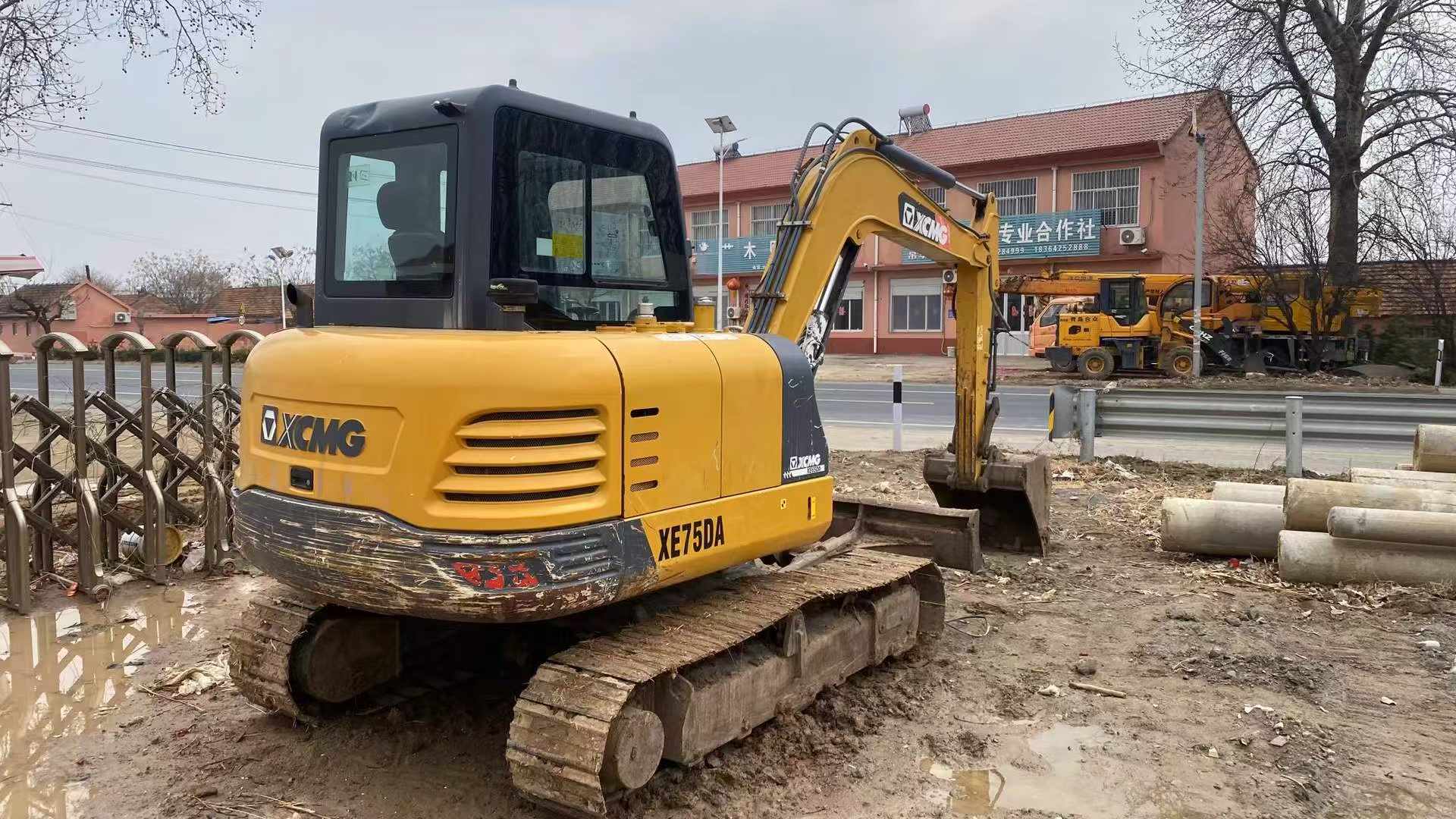

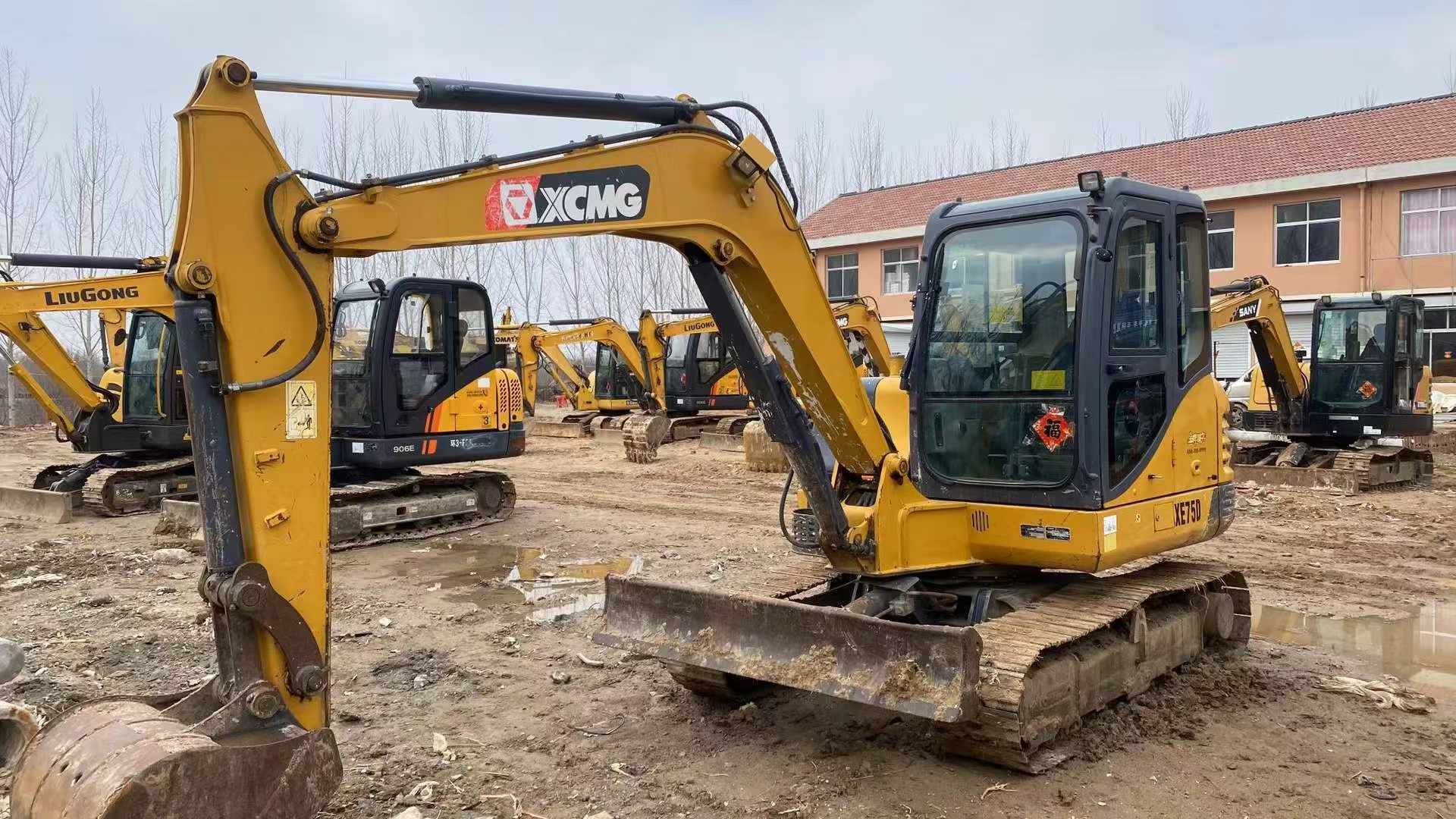

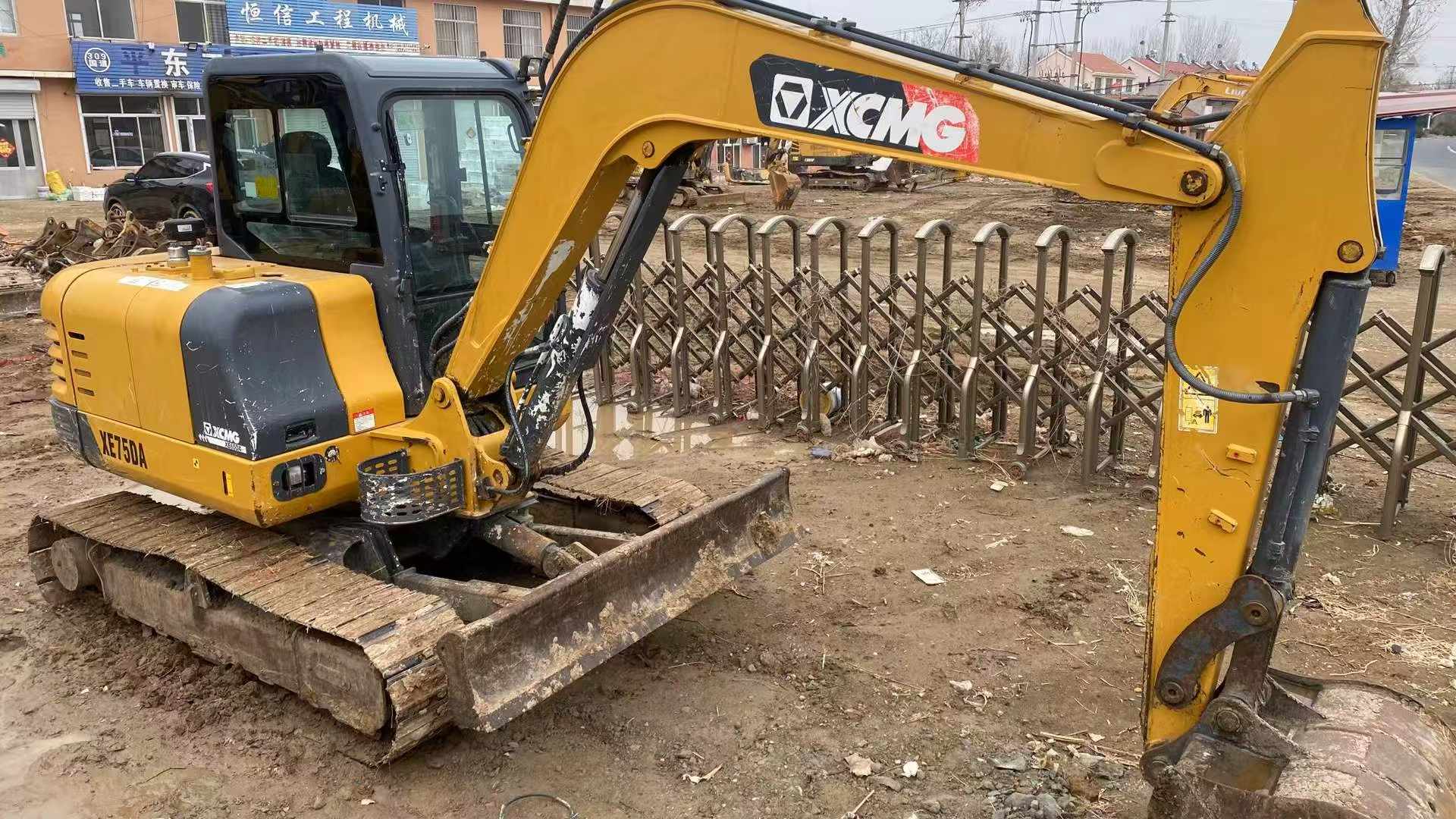

Built for the long haul, this 2021 XCMG XE65D compact excavator delivers proven reliability in a 6-ton package. Powered by a robust Yanmar 4TNV94L engine generating 39.8kW at 2200rpm, this machine combines Japanese engine technology with Chinese manufacturing excellence from Xuzhou. With just minimal operational hours since production, it demonstrates XCMG's commitment to durability and consistent performance across demanding jobsites.
Engineered for versatility, the XE65D features a maximum digging depth of 3830mm and a digging radius extending to 6130mm, making it ideal for utility work, landscaping, and small construction projects. The Rexley/Ogail hydraulic system delivers 138-143 L/min flow capacity, while bucket digging force reaches 48.3kN—substantial power for its class. Water-cooled operation and a 110L fuel tank ensure extended runtime without compromise.
Currently located in Qingdao, Shandong, this proven workhorse offers compact dimensions (5860mm transport length) for easy mobilization, yet maintains a 35° climbing ability and 4.2km/h travel speed. Standard hydraulic crushing pipeline and comprehensive safety features make this XE65D ready for immediate deployment in your fleet.
| Specifications | Value |
|---|---|
| No. | 1021967 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

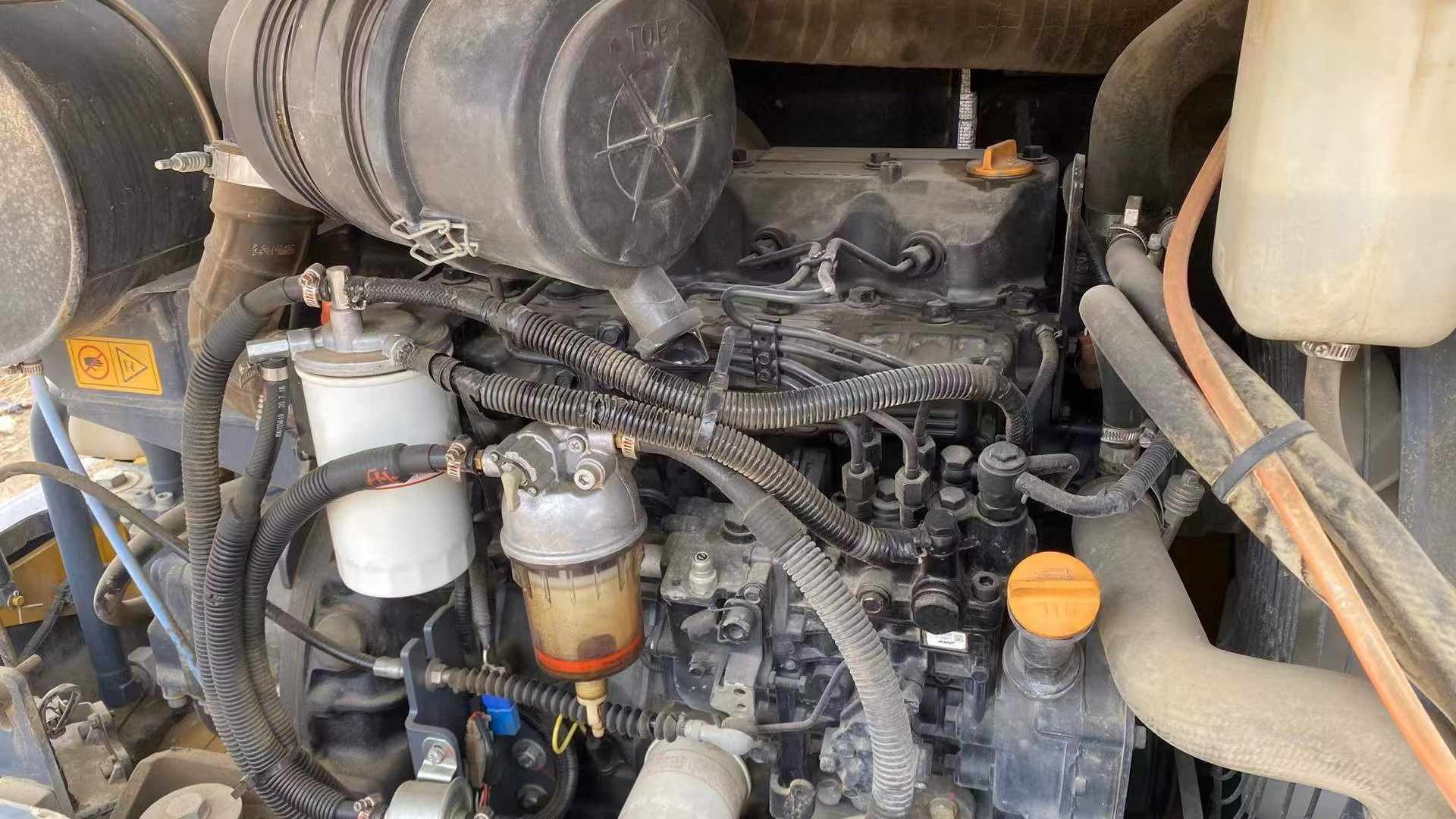

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
