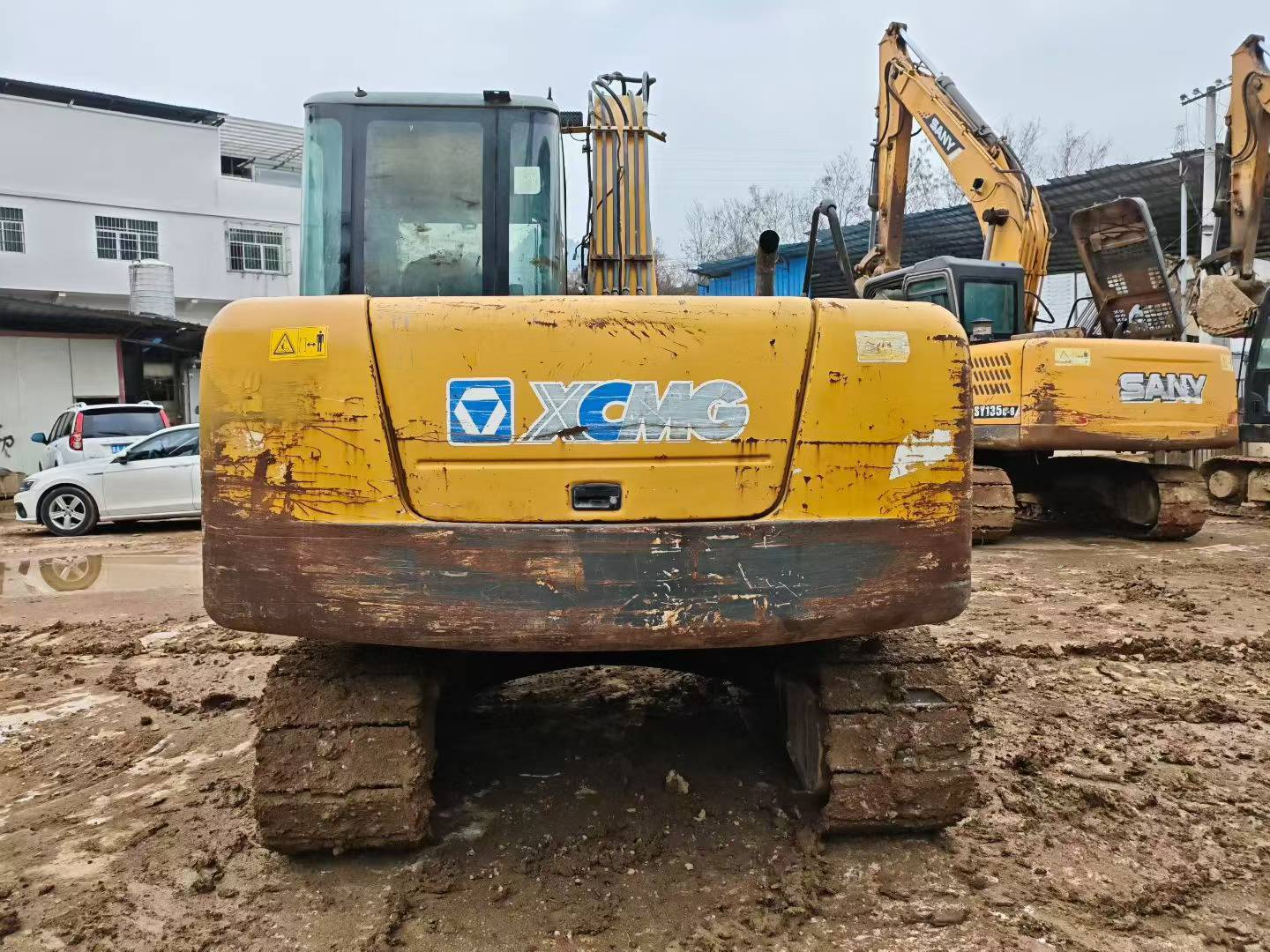

2016 XCMG XE80

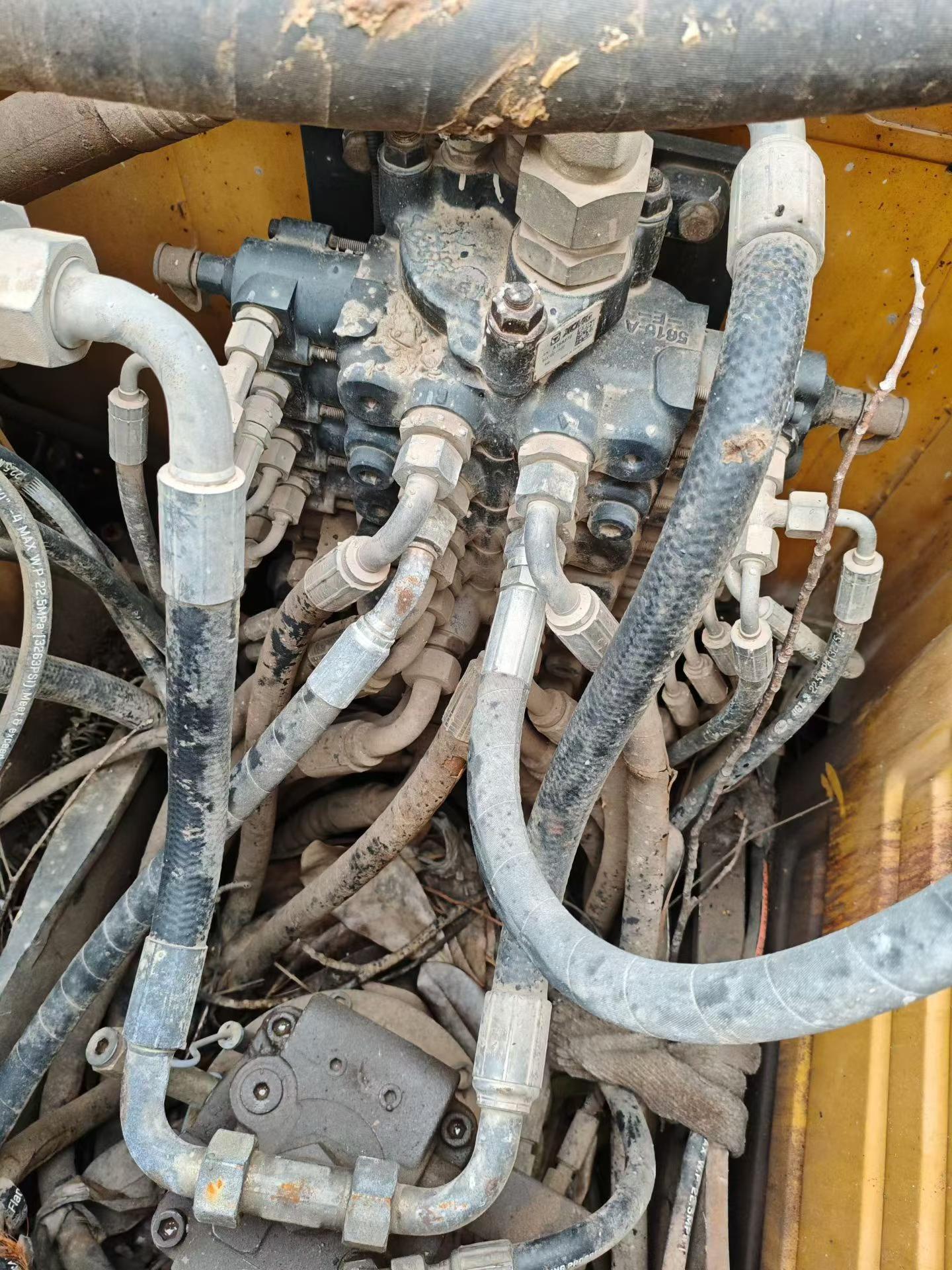

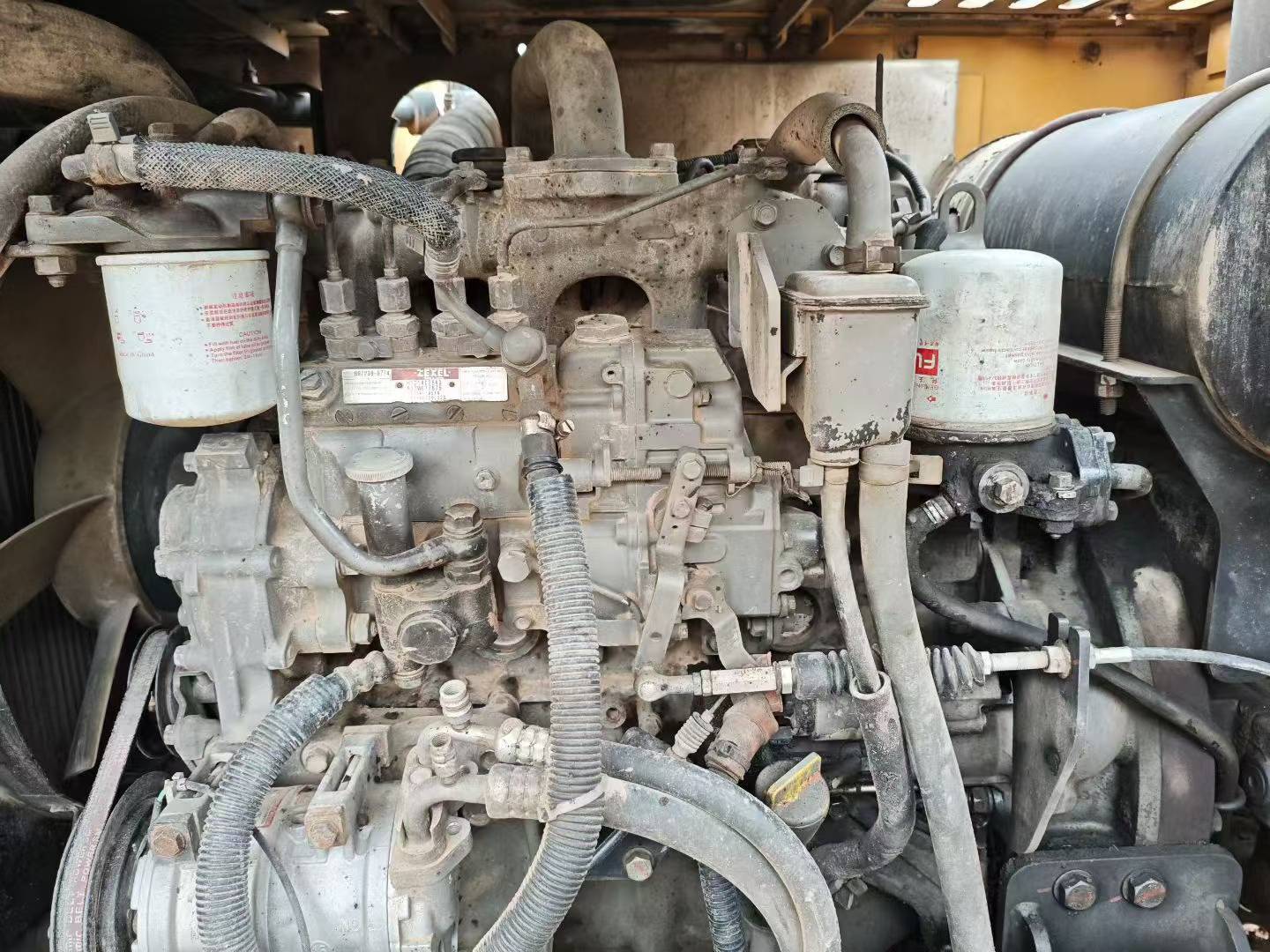

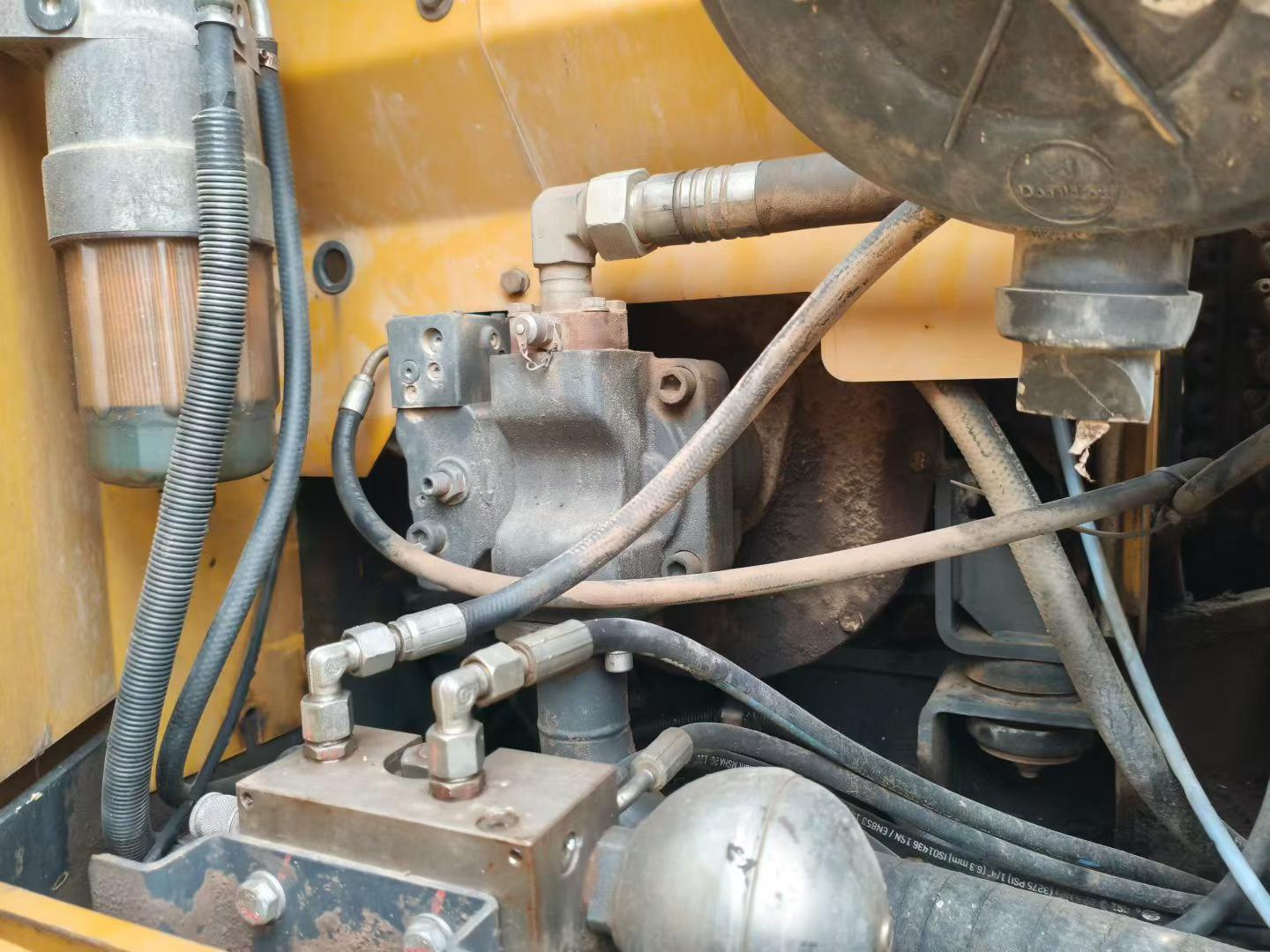

Engineered with a Cummins B3.3 turbocharged water-cooled engine delivering 60kW at 2200 rpm, this 8-ton excavator combines proven powertrain reliability with advanced hydraulic architecture. The Toshiba variable pump system paired with a gear pump generates 198 L/min main flow, driving plunger hydraulic motors in both travel and rotation circuits for precise control under demanding worksite conditions. Operating weight of 7,425 kg provides optimal stability while maintaining 34.2 kPa ground pressure for reduced surface impact.

Hydraulic performance defines operational capability. With 53.6 kN bucket digging force and 39.2 kN arm digging force, this machine tackles compacted materials efficiently. The boom extends 3,710 mm with a 1,650 mm arm, achieving 6,375 mm maximum dig radius and 4,140 mm dig depth. Main system pressure reaches 27.4 MPa across working circuits, ensuring consistent breakout force throughout the dig cycle.

Core Specifications:

• 6-cylinder Cummins B3.3 engine, 3.3L displacement
• Bucket capacity range: 0.14–0.34 m³
• 35° grading capability with 12 rpm swing speed
• Dual-speed travel: 4.2/2.7 km/h
• 127L fuel capacity, 124L hydraulic reservoir<
