Product Description

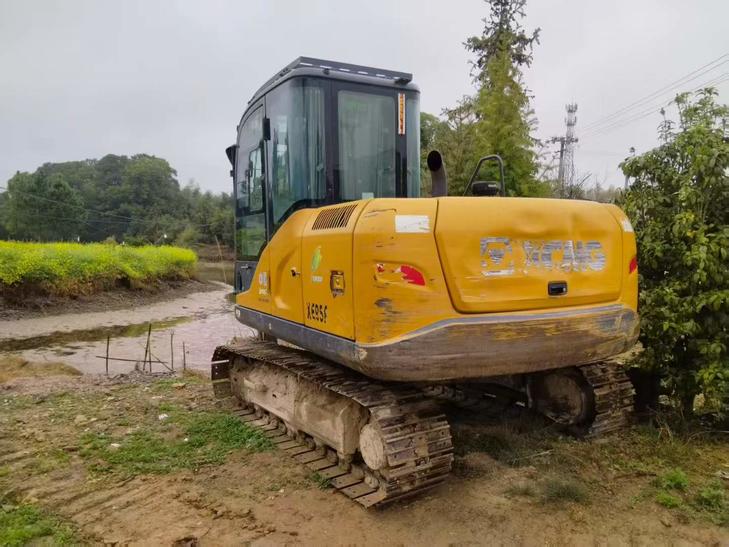

Backed by one of China's most established construction equipment manufacturers, this 2021 XCMG XE85C 8-ton excavator delivers proven performance with long-term support you can trust. Operating at 53.8kW with a maximum digging depth of 4,130mm and bucket capacity of 0.34m³, this machine handles mid-range excavation, trenching, and site preparation with reliable consistency. XCMG's extensive global parts network ensures replacement components remain accessible and affordable throughout the machine's service life—a critical advantage when purchasing used equipment.
Key Specifications:
- Operating weight: 8,100kg (with dozer blade)
- Engine: 4JG1TPC, 4-cylinder, 53.8kW @ 2,150rpm
- Maximum digging reach: 6,295mm
- Bucket digging force: 51.2kN
- Hydraulic flow: 198+21 L/min dual pump system
- Compact transport dimensions: 6,144 × 2,332 × 2,712mm
Currently located in Jiangxi Ji'an, China, this XE85C represents smart value in the used market. XCMG's reputation for durability translates to strong resale values and predictable maintenance costs—essential factors for operators managing fleet budgets.
| Specifications | Value |
|---|---|
| No. | 1019705 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
