2022 XCMG XE85C

1/6

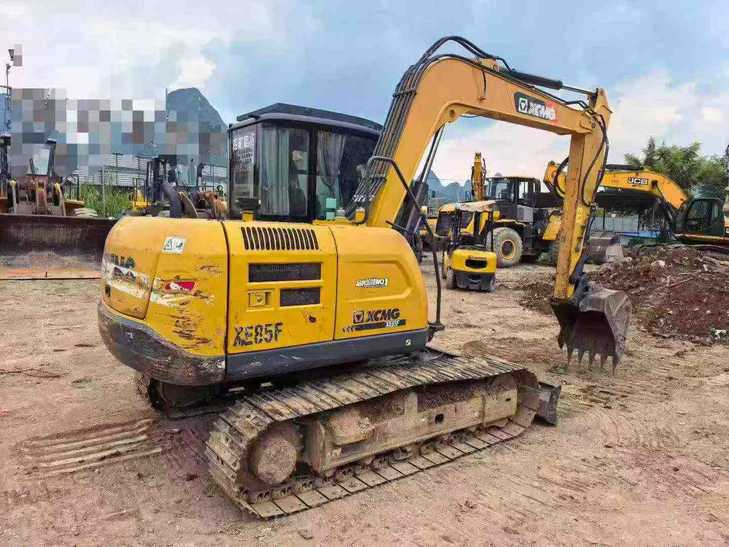

Buy XCMG XE85C Used Excavator / 1
Buy XCMG XE85C Used Excavator / 2

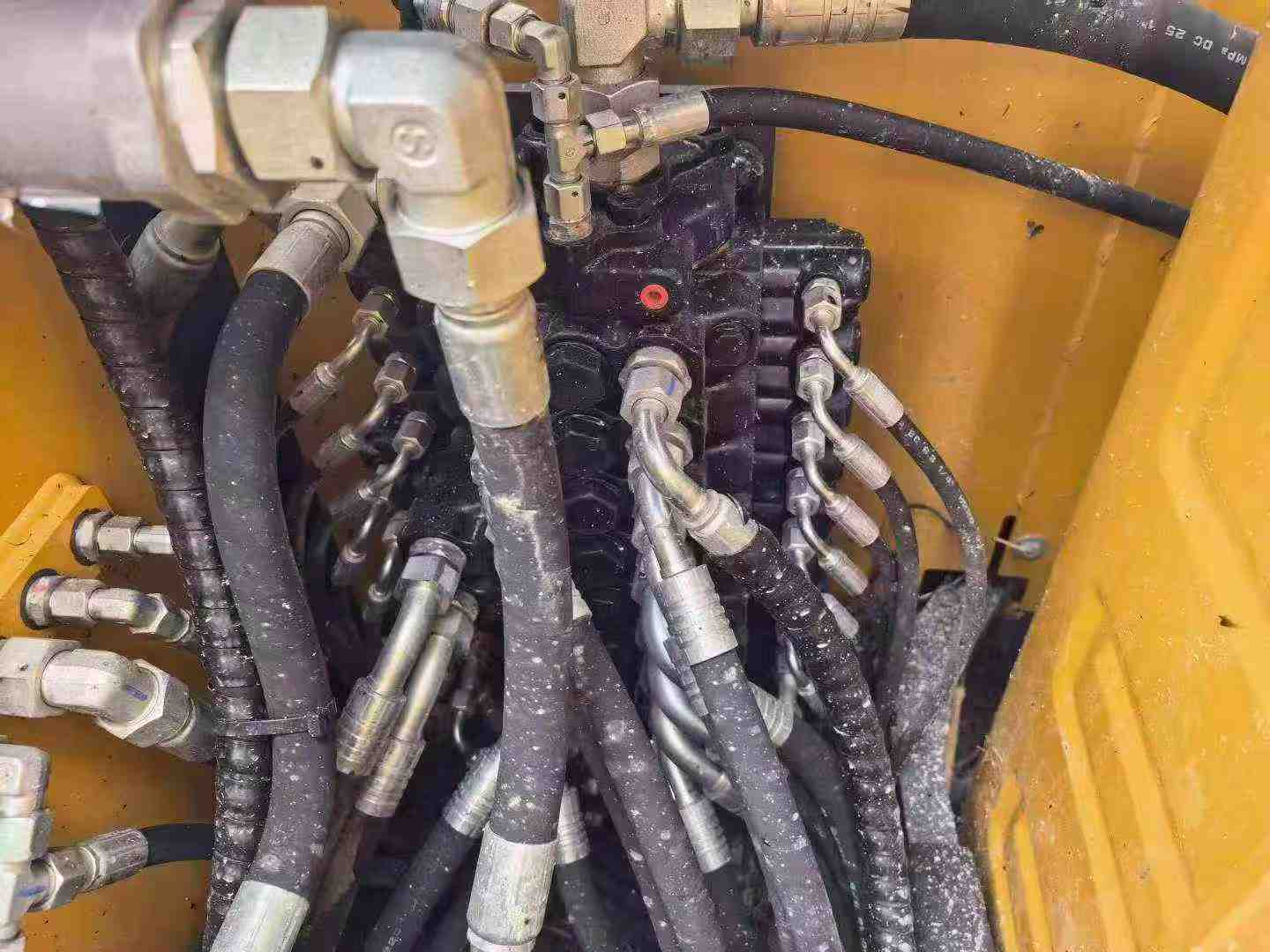

Buy XCMG XE85C Used Excavator / 3

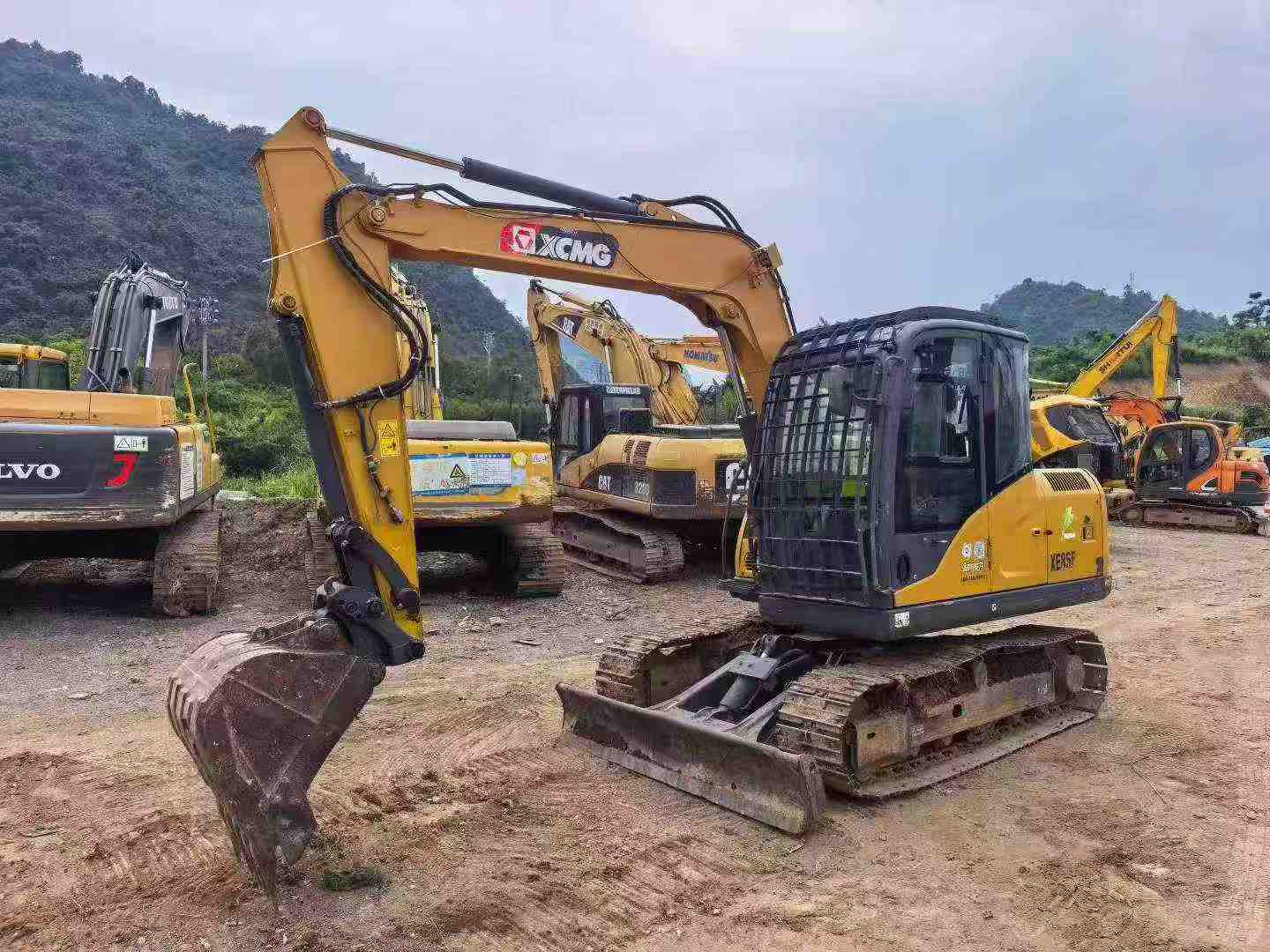

Buy XCMG XE85C Used Excavator / 4

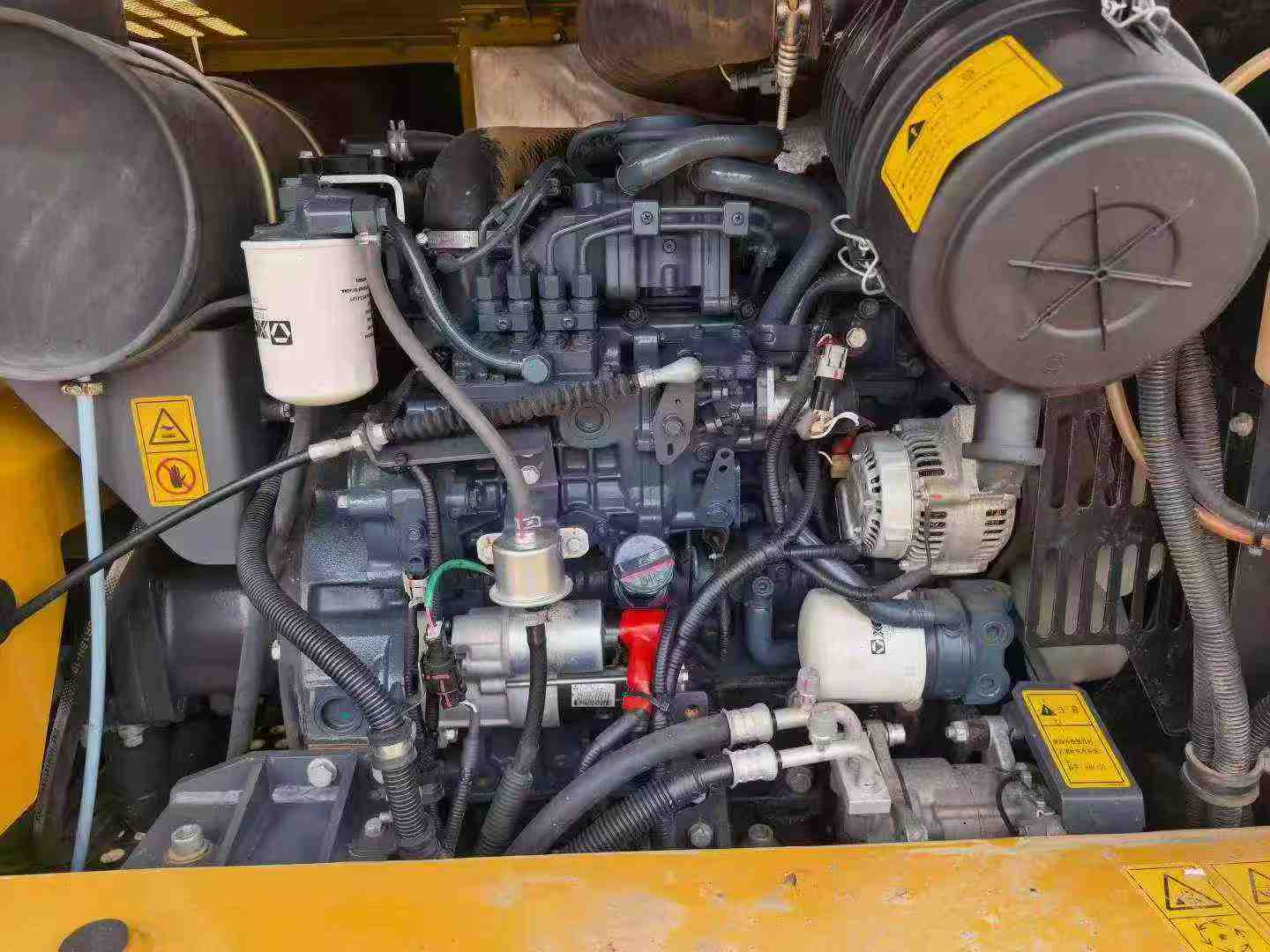

Buy XCMG XE85C Used Excavator / 5
Buy XCMG XE85C Used Excavator / 6

Product Description

This 2022 XCMG XE85C excavator is currently available from Guangxi, China. The machine comes equipped with a grapple attachment, making it suitable for material handling, demolition, and forestry applications. With minimal operational hours since manufacturing, this mid-size excavator offers reliable performance for contractors and equipment rental operations.

The XE85C represents XCMG's 8.5-ton class excavator platform, designed for versatility across construction, earthmoving, and site development projects. The included grapple extends the machine's capability beyond standard bucket work.

  • Year of Manufacture: 2022
  • Model: XCMG XE85C
  • Configuration: Equipped with grapple attachment
  • Current Location: Guangxi Province, China
  • Condition: Used

This unit is positioned for immediate deployment in regional markets. Contact us for detailed specifications, inspection arrangements, and export documentation assistance.

SpecificationsValue
No.1161928
Tonnage (tons)8
Working weight (kg)7700/8100 (with dozer)
Bucket capacity (m³)0.34
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4JG1TPC
Rated power (kw/rpm)53.8/2150
Maximum torque (N.m/rpm)255/1800
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)34.6/36.4 (with dozer)
Rotation speed (rpm)11
Climbing ability (%)35 °
Bucket digging force (kN)51.2
Rod digging force (kN)34.2
Maximum tractive force (kN)34.2
Travel speed (km/h)4.9/2.6
Maximum flow of main pump (l/min)198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)9.7
Total transport length (mm)6144
Total transport width (mm)2332
Total transport height (mm)2712
Counterweight ground clearance (mm)827
Minimum ground clearance (mm)428
Back end turning radius (mm)1805
Track gauge (mm)1870
Total track width (mm)450
Maximum digging radius (mm)6295
Maximum digging depth (mm)4130
Maximum excavation height (mm)7165
Maximum unloading height (mm)5060
Maximum vertical digging depth (mm)3500
Bulldozer lift or depth (mm)409/438
Dodging plate width × height (mm)2320 x 416
