Product Description

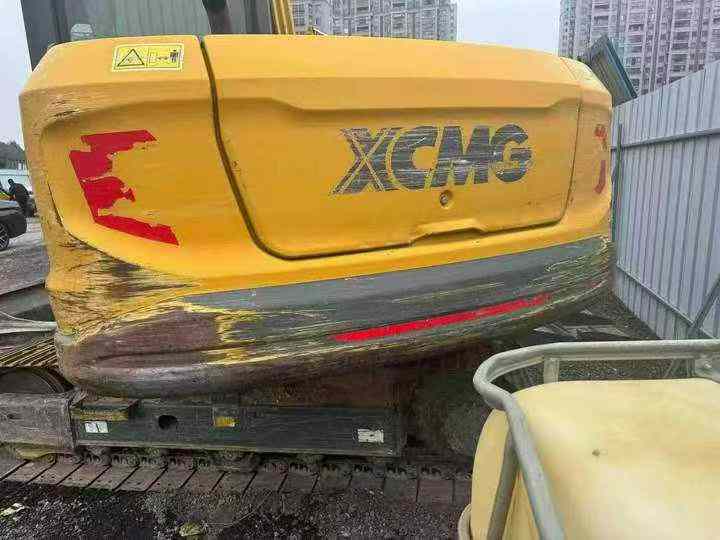

Built in 2024, this XCMG XE85C 8-ton excavator delivers proven performance backed by one of China's most established heavy equipment manufacturers. Operating at 7,700 kg working weight with a robust 53.8 kW engine, this machine combines a 6,295 mm maximum digging radius with 4,130 mm depth capability—ideal for mid-sized earthmoving projects requiring precision and power.
XCMG's global service network ensures parts availability and technical support across continents, protecting your investment long-term. With 51.2 kN bucket digging force and 34.2 kN rod force, this XE85C tackles demanding soil conditions while maintaining fuel efficiency through its 130L tank and proven 4JG1TPC engine technology.
- Specs: 0.34 m³ bucket capacity | 3,720 mm boom | 1,622 mm arm
- Hydraulics: 198+21 L/min main pump flow | 27.4 MPa travel circuit
- Mobility: 35° climbing ability | 4.9 km/h travel speed
- Location: Shaoxing, Zhejiang, China
XCMG's strong resale value and widespread dealer network make this excavator a strategic choice for contractors seeking reliable used equipment with manufacturer-backed support.
| Specifications | Value |
|---|---|
| No. | 1022334 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
