Product Description

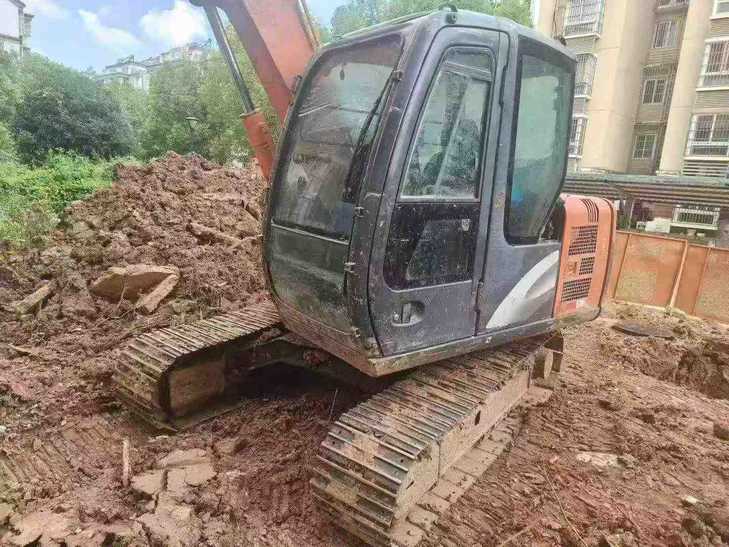

This 2017 Hitachi ZX70-5A midi excavator offers reliable performance for contractors seeking proven Japanese engineering at a competitive price point. Currently located in Anhui, China, this 7-ton class machine delivers the durability and fuel efficiency Hitachi's ZX-5A series is known for in the compact excavator segment.
The ZX70-5A features a powerful engine designed for demanding jobsites while maintaining excellent operability in confined spaces. With its robust hydraulic system and stable undercarriage, this excavator handles trenching, grading, and material handling applications with consistent performance.
Key specifications include:
- Operating weight: approximately 7 tons
- Hitachi Isuzu engine with advanced fuel management
- Hydraulic quick coupler compatible
- Enclosed ROPS/FOPS certified cab
- Standard auxiliary hydraulic circuit
This unit has been maintained in good working condition and represents solid value for operators requiring a dependable midi excavator for construction, utility, or landscaping projects.
| Specifications | Value |
|---|---|
| No. | 1141618 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33-0.38 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1620 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke - Water cooled - direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | 3.4-5.0 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63/1 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*85*55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*115*65 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1720 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2260 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2320*435 |
| Maximum excavation radius of stop surface (mm) | 6170 |
