Product Description

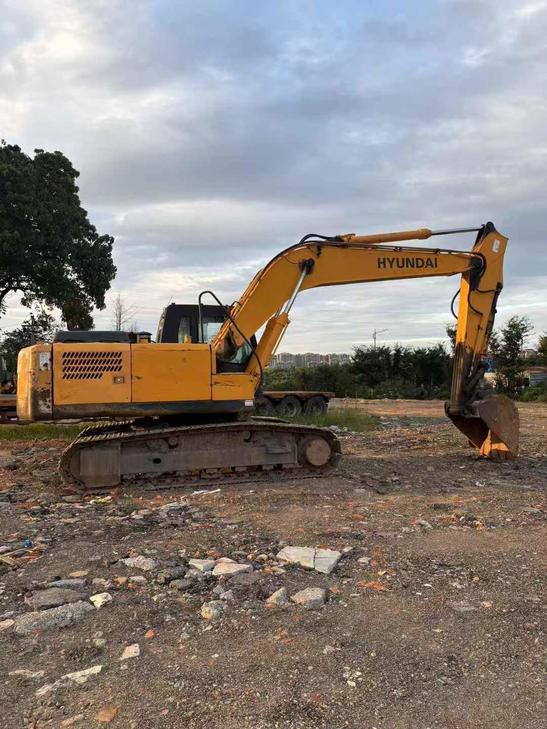

This 2011 Hyundai R215-7 excavator, currently located in Jiangxi, China, represents a proven workhorse in the mid-size excavator category. The R215-7 series is recognized for its robust hydraulic system and fuel-efficient performance in demanding construction and earthmoving applications.
This unit comes equipped with a hydraulic breaker attachment, expanding its versatility for demolition, rock breaking, and site preparation tasks. The machine's operational history and attachment configuration make it suitable for contractors seeking reliable equipment for infrastructure projects, quarrying operations, or urban construction sites.
- Operating weight class: approximately 21 metric tons
- Includes hydraulic hammer attachment
- Hyundai R215-7 platform with proven reliability
- Available for inspection in Jiangxi, China
Prospective buyers are encouraged to arrange pre-purchase inspection to verify current mechanical condition and operational status.
| Specifications | Value |
|---|---|
| No. | 1141783 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai D6BT-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 123.3 |
| Rod digging force (kN) | 95.1 |
| Travel speed (km/h) | 3.5/5.2 |
| Main overflow set pressure (Mpa) | 47 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 280 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 280 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 32.7 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
