Product Description

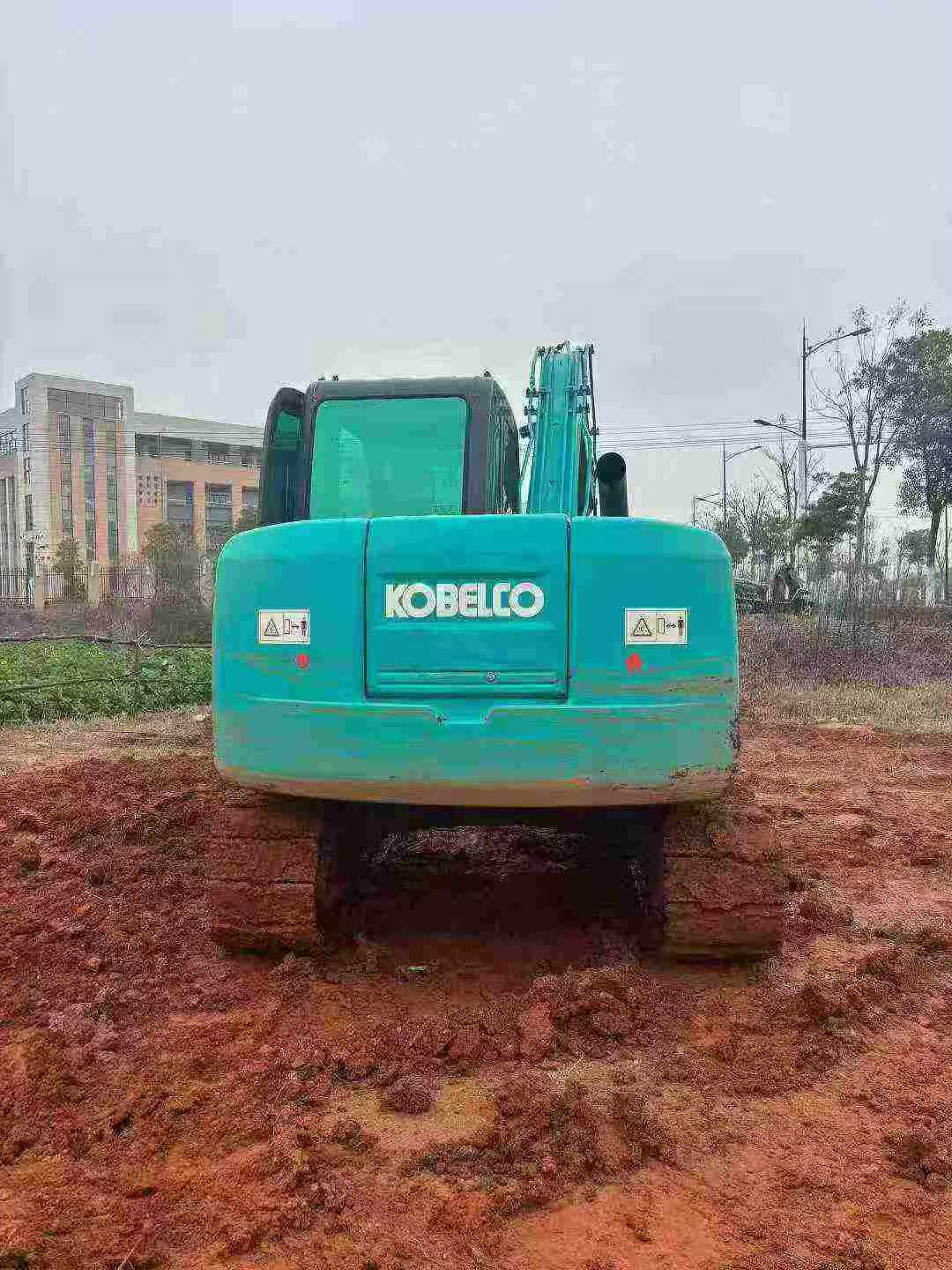

Built for immediate deployment on demanding job sites, this 2018 Kobelco SK75 delivers 7-ton performance with precision and reliability. Powered by a robust ISUZU AU4LE2X engine generating 41kW at 2200 rpm, this compact excavator tackles digging, grading, and material handling with consistent hydraulic power. The water-cooled 4-cylinder engine and double variable displacement axial piston pump system provide responsive control across all working conditions.
Operational specifications include:
- Maximum digging depth of 4160mm for trench and foundation work
- Maximum digging radius of 6460mm for extended reach applications
- Working hydraulic circuit pressure of 29.4 Mpa for powerful breakout force
- Dual travel speeds (2.8/5.3 km/h) for efficient site mobility
- Compact turning radius (1760mm front, 1290mm rear) for confined spaces
- 120L fuel capacity and 120L hydraulic system for extended operation
Currently located in Jiangxi, this machine arrives site-ready with proven backhoe configuration. The SK75 combines Japanese engineering with practical dimensions—2630mm transport height ensures trailer compatibility while maintaining a 7390mm maximum excavation height
| Specifications | Value |
|---|---|
| No. | 994400 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
