Product Description
This 2019 Sumitomo SH80-6 excavator represents a premium addition to any fleet. Manufactured during Sumitomo's advanced production period, this 8-ton class machine combines proven Japanese engineering with practical jobsite performance. Currently located in Shandong, China, the unit offers reliable hydraulic systems and efficient fuel consumption characteristics typical of the SH80-6 series.
Key features include:
- Compact 8-ton operating weight for versatile applications
- Sumitomo's robust undercarriage design
- Efficient hydraulic system for productivity
- Suitable for urban construction and utility work

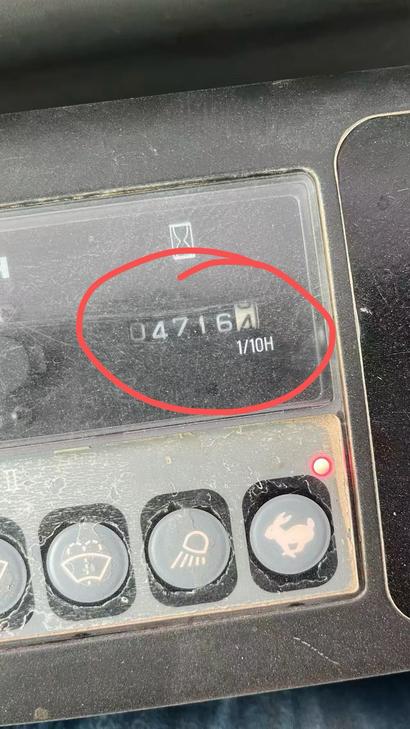

- Low operational hours expected for 2019 vintage
The SH80-6 delivers the balance of power and maneuverability required for confined work areas while maintaining the durability standards associated with Japanese manufacturing. Ideal for contractors seeking dependable mid-size excavation equipment with established parts support networks.
| Specifications | Value |
|---|---|
| No. | 1141630 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
