Product Description

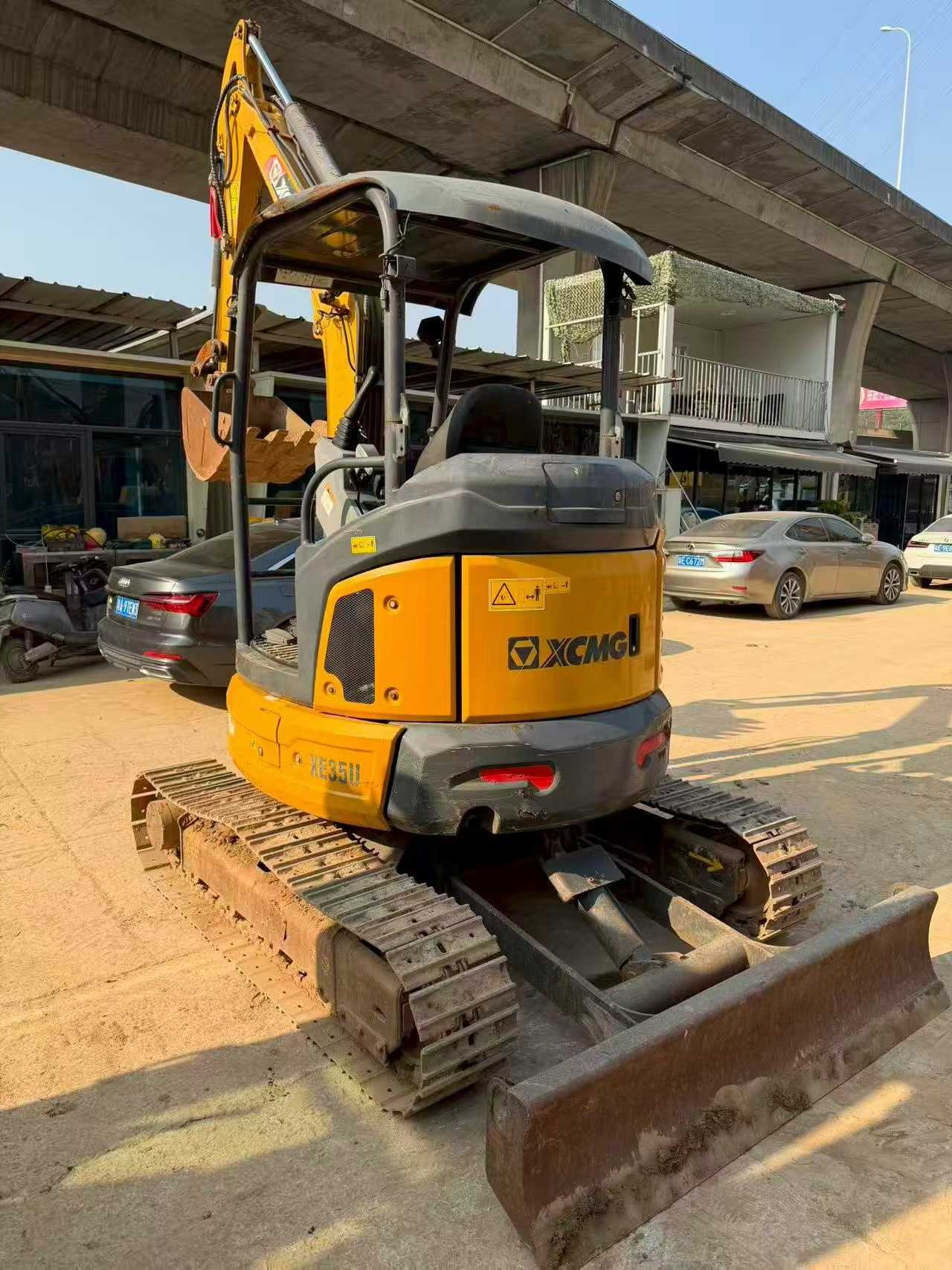

Built for contractors who demand proven performance, this 2022 XCMG XE35U mini excavator delivers reliable 4-ton capacity with the backing of China's largest construction machinery manufacturer. Operating at 4,200kg working weight with a 22.2kW Yanmar 3TNV88-B engine, this compact machine combines impressive digging force (28.6kN bucket, 20.3kN arm) with a maximum reach of 5,300mm and 3,060mm digging depth—ideal for urban construction, landscaping, and utility work in Guangzhou's demanding market.
XCMG's market dominance translates directly to ownership advantages. Parts availability throughout China ensures minimal downtime, while the brand's established dealer network provides accessible service support. The water-cooled direct injection engine offers proven durability across 2,400rpm operation, backed by straightforward maintenance intervals. With 0.12m³ bucket capacity and 108L/min hydraulic flow, productivity remains consistent throughout the workday.
Key specifications supporting long-term value:
- Compact transport dimensions: 4,970mm length × 1,740mm width × 2,535mm height
- 30% climbing ability with 31.6kN maximum tractive force
- 9rpm rotation speed for efficient cycle times
| Specifications | Value |
|---|---|
| No. | 993674 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
