2015 XCMG XE85C

1/4

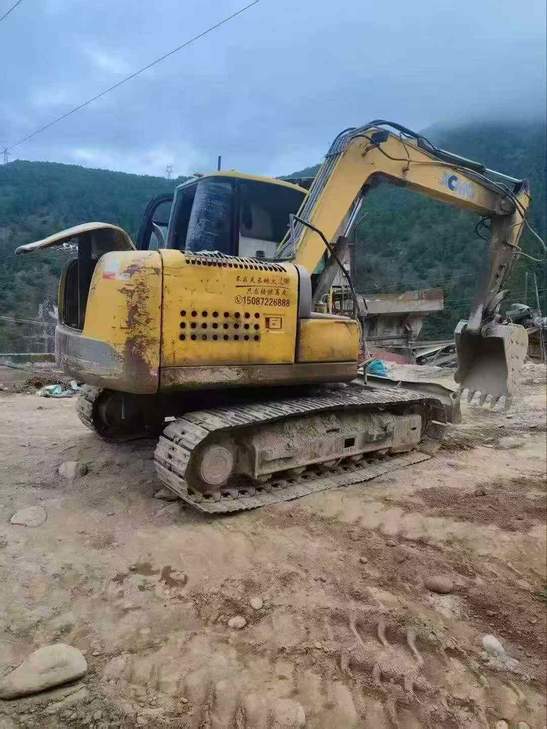

Buy XCMG XE85C Used Excavator / 1
Buy XCMG XE85C Used Excavator / 2
Buy XCMG XE85C Used Excavator / 3
Buy XCMG XE85C Used Excavator / 4

Product Description

This 2015 XCMG XE85C excavator represents reliable Chinese engineering at an accessible price point. Currently located in Sichuan, China, this 8.5-ton class machine has completed nearly a decade of operational service while maintaining functional integrity. The XE85C series is recognized for straightforward hydraulic systems and serviceable components common to XCMG's mid-range excavator lineup.

  • Year of Manufacture: 2015
  • Model: XCMG XE85C
  • Operating Weight Class: Approximately 8.5 tons
  • Current Location: Sichuan Province, China
  • Condition: Used, operational

Suitable for contractors seeking cost-effective earthmoving capacity in construction, landscaping, or light demolition applications. This unit offers proven XCMG durability with established parts availability throughout Asia-Pacific markets. Inspection recommended prior to purchase. Export documentation and logistics support available upon request.

SpecificationsValue
No.1141745
Tonnage (tons)8
Working weight (kg)7700/8100 (with dozer)
Bucket capacity (m³)0.34
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4JG1TPC
Rated power (kw/rpm)53.8/2150
Maximum torque (N.m/rpm)255/1800
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)34.6/36.4 (with dozer)
Rotation speed (rpm)11
Climbing ability (%)35 °
Bucket digging force (kN)51.2
Rod digging force (kN)34.2
Maximum tractive force (kN)34.2
Travel speed (km/h)4.9/2.6
Maximum flow of main pump (l/min)198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)9.7
Total transport length (mm)6144
Total transport width (mm)2332
Total transport height (mm)2712
Counterweight ground clearance (mm)827
Minimum ground clearance (mm)428
Back end turning radius (mm)1805
Track gauge (mm)1870
Total track width (mm)450
Maximum digging radius (mm)6295
Maximum digging depth (mm)4130
Maximum excavation height (mm)7165
Maximum unloading height (mm)5060
Maximum vertical digging depth (mm)3500
Bulldozer lift or depth (mm)409/438
Dodging plate width × height (mm)2320 x 416
see more

Overview

No.1141745

Brand Name:

XCMG

Model Number:

XE85C

Year:

2015

Location:

Sichuan China

Pub Date
